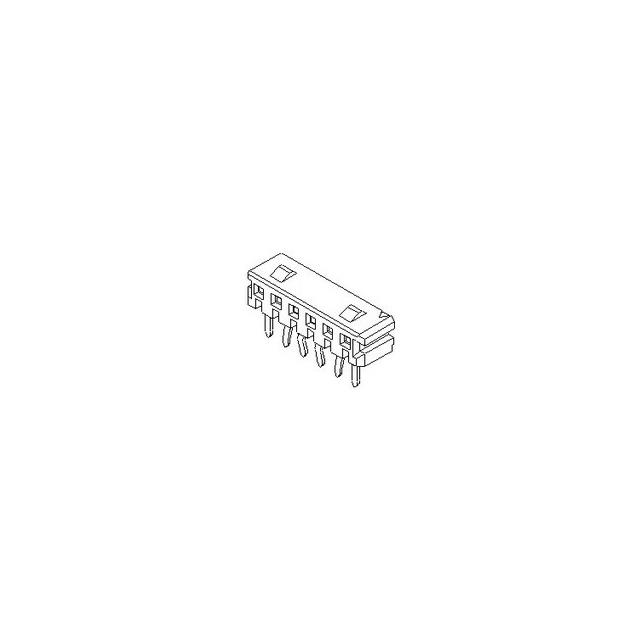

52418-1010

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Number of Conductors :

ONE

Contact Material :

Bronze

REACH SVHC :

No SVHC

IEC Conformance :

No

MIL Conformance :

No

Connector Type :

Receptacle

Reference Standard :

UL

Pbfree Code :

yes

Dielectric Withstanding Voltage :

500VAC V

Pitch :

2mm

Factory Lead Time :

9 Weeks

Min Operating Temperature :

-40°C

DIN Conformance :

No

Contact Pattern :

RECTANGULAR

Published :

2001

Orientation :

RIGHT ANGLE

Contact Style :

SQ PIN-SKT

HTS Code :

8536.69.40.40

Option :

GENERAL PURPOSE

RoHS Status :

RoHS Compliant

UL Flammability Code :

94V-0

Total Number of Contacts :

10

Number of Positions :

10

Glow Wire Compliant :

Non-Compliant

Contact Resistance :

20mOhm

Number of Rows :

1

Polarization Key :

POLARIZED HOUSING

Filter Feature :

No

Lead Pitch :

2mm

Termination :

Solder

Flammability Rating :

UL94 V-0

Contact Gender :

FEMALE

Number Of PCB Rows :

1

Max Operating Temperature :

105°C

Reliability :

COMMERCIAL

Voltage - Rated :

125V

Housing Material :

Polyester

Mount :

Through Hole

Contact Plating :

Tin

Current Rating :

1.5A

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Height :

3.15mm

Lead Free :

Lead Free

Radiation Hardening :

No

Body Length or Diameter :

0.846 inch

ECCN Code :

EAR99
