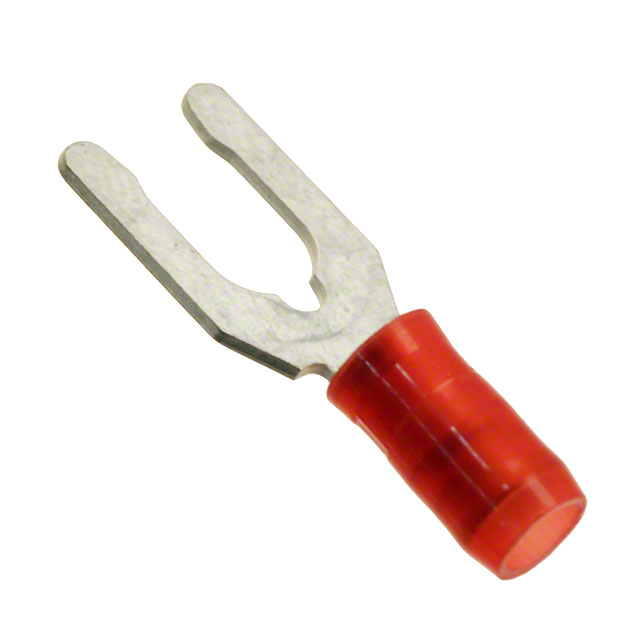

52411
Or copy the link below:
- Mfr.Part #
- 52411
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 16-22AWG #10 RED
- Stock
- 458
- In Stock ：
- 458
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Insulation :
- Insulated
- Tongue Thickness :
- 840μm
- Packaging :
- Bulk
- Stud/Tab Size :
- 10 Stud
- Published :
- 2010
- Wire/Cable Diameter :
- 3.18 mm
- Factory Lead Time :
- 17 Weeks
- Color :
- Red
- Body Material :
- Bronze
- Pbfree Code :
- yes
- Material - Insulation :
- Polyamide (PA), Nylon
- Length - Termination :
- 0.414 10.52mm
- Series :
- PIDG
- Lead Free :
- Not Applicable
- Insulation Diameter :
- 0.080 ~ 0.125 (2.03mm ~ 3.18mm)
- Length - Ring Center to Termination :
- 0.283 7.19mm
- Insulated Wire Support :
- yes
- Contact Plating :
- Tin
- Length :
- 25.527mm
- Heavy Duty :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 8.71mm
- Gender :
- FEMALE
- HTS Code :
- 8536.90.40.00
- Feature :
- Serrated Termination
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Phosphor Bronze
- Width - Outer Edges :
- 0.343 8.71mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Terminal Type :
- Spring, Snap
- Voltage - Rated AC :
- 300V
- Wire Gauge :
- 16-22 AWG
- Wire Gauge (Min) :
- 22 AWG
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Thickness :
- 840μm
- Orientation :
- Straight
- Stud Diameter :
- 4.82 mm
- RoHS Status :
- RoHS Compliant
- Stud Size :
- M5
- ELV :
- Compliant
- Mount :
- Free Hanging
- Length - Overall :
- 1.005 25.53mm
- Tongue Inside Opening :
- 0.190 (4.83mm)
- Depth :
- 8.71mm
- ECCN Code :
- EAR99
- Termination :
- Crimp
- Wire Gauge (Max) :
- 16 AWG
- Datasheets
- 52411
52411 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
