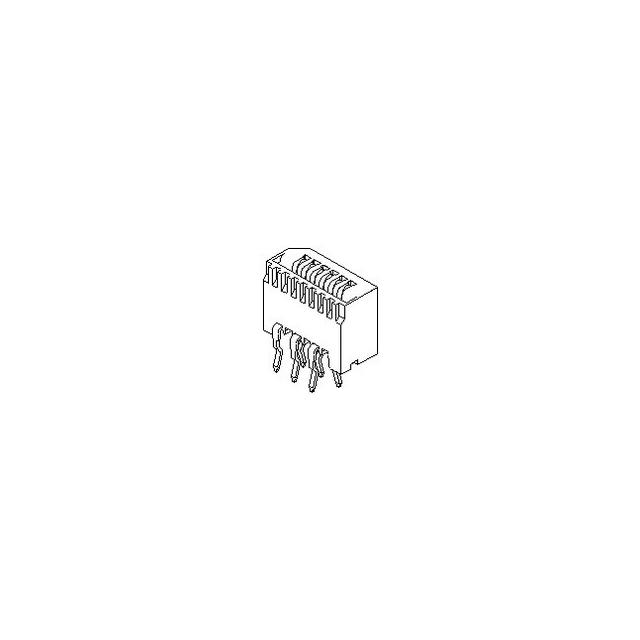

52045-1545

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Product :

Board Mount

Max Operating Temperature :

85 °C

Depth :

5.1 mm

Product Category :

FFC and FPC Connectors

Stackable :

No

Type :

FFC/FPC CONNECTOR

Gender :

FEMALE

Length :

22.15 mm

Number of Circuits :

15

Product Length :

22.15 mm

Minimum Operating Temperature :

- 40 C

Pitch :

2.5 mm

Operating Temperature :

-40 to 85 °C

RoHS Status :

RoHS Compliant

Product Type :

FFC and FPC Connectors

Contact Resistance :

30 mΩ

Plating :

Tin

Operating Temp Range :

-40C to 85C

Base/Housing Material :

Polyester

Contact Resistance Max :

30(mohm)

Number of Positions :

15

Voltage Rating :

200 V

Pitch (mm) :

1.25(mm)

Orientation :

Vertical

Packaging :

Tray

Housing Material :

Polyester

Termination :

Solder

Number of Contacts :

15

Min Operating Temperature :

-40 °C

Radiation Hardening :

No

Lead Pitch :

1.25 mm

Mounting Style :

Through Hole

Current Rating (Max) :

1/Contact(A)

Voltage Rating (DC) :

200 V

Body Orientation :

Straight

Insulation Resistance :

500 mΩ

Product Depth (mm) :

5.6(mm)

Mounting :

Through Hole

Contact Location :

-

Voltage Rating Max :

200V

Accessory Type :

-

Subcategory :

FFC and FPC Connectors

Series :

52045

Number of Contact Rows :

1

Manufacturer :

Molex

Contact Plating :

Tin

Maximum Operating Temperature :

+ 85 C

Product Length (mm) :

22.15(mm)

Termination Method :

Solder

Mounting Angle :

Vertical

Country of Origin :

MY

Contact Material :

Bronze

Contact Gender :

Socket

Number of Rows :

1

Housing Color :

Grey

Product Height (mm) :

8(mm)

RoHS :

Details

Current Rating :

500 mA

Brand :

Molex

Termination Style :

Through Hole
