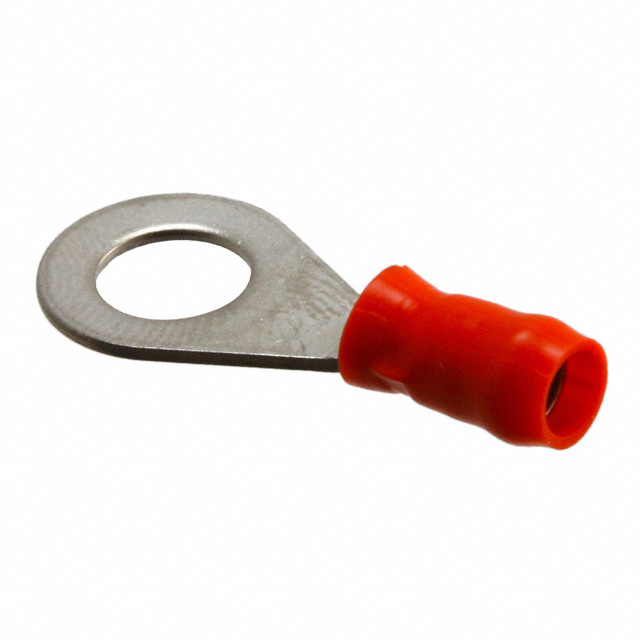

50837
Or copy the link below:
- Mfr.Part #
- 50837
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 16-18AWG #1/4
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Lead Free :
- Not Applicable
- Width - Outer Edges :
- 0.468 11.89mm
- Stud Diameter :
- 6.731 mm
- RoHS Status :
- RoHS Compliant
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Material - Insulation :
- Polytetrafluoroethylene (PTFE)
- Stud/Tab Size :
- 1/4 Stud
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- ELV :
- Compliant
- Terminal Type :
- Circular
- Plating :
- Nickel
- DIN Conformance :
- No
- Shell Material :
- Polyamide
- Empty Shell :
- No
- Length - Overall :
- 1.078 27.38mm
- Mounting Type :
- Free Hanging (In-Line)
- Insulated Wire Support :
- yes
- Wire Gauge :
- 16-18 AWG
- Thickness :
- 0.031 0.79mm
- Number of Holes :
- 1
- Wire Gauge (Min) :
- 18 AWG
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 16 AWG
- Length :
- 27.381mm
- Connector Type :
- COMBINATION LINE CONNECTOR
- Filter Feature :
- No
- Series :
- PIDG, Strato-Therm
- Insulation Diameter :
- 0.055 ~ 0.135 (1.40mm ~ 3.43mm)
- Sealable :
- No
- Pbfree Code :
- yes
- Voltage - Rated AC :
- 300V
- Tongue Thickness :
- 840μm
- Published :
- 2005
- Stud Size :
- M6
- Contact Material :
- Copper
- JESD-609 Code :
- e3
- Mixed Contacts :
- No
- Insulation :
- Insulated
- Option :
- GENERAL PURPOSE
- Feature :
- Serrated Termination
- Total Number of Contacts :
- 15
- Factory Lead Time :
- 18 Weeks
- IEC Conformance :
- No
- Color :
- Orange
- Termination :
- Crimp
- Contact Gender :
- FEMALE
- Datasheets
- 50837
50837 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
