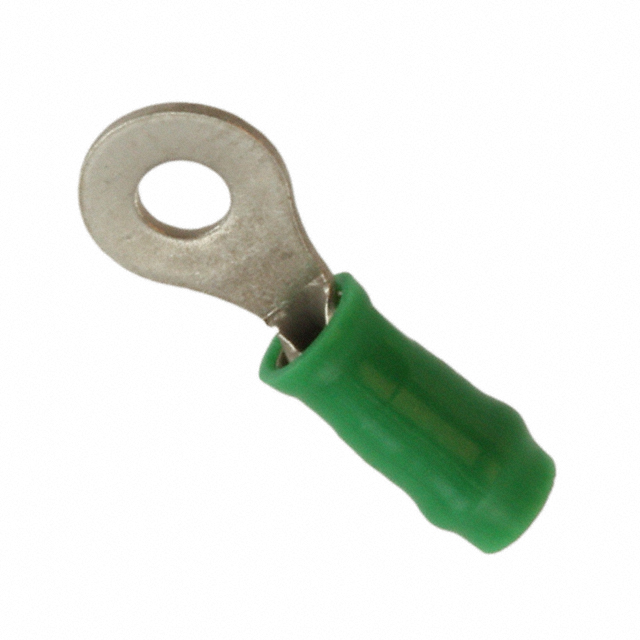

50831
Or copy the link below:
- Mfr.Part #
- 50831
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 20-22AWG #4 CRIMP
- Stock
- 353
- In Stock ：
- 353
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Plating :
- Nickel
- Mounting Type :
- Free Hanging (In-Line)
- Published :
- 2004
- Feature :
- Serrated Termination
- Mounting Option 1 :
- #4-40
- Series :
- PIDG, Strato-Therm
- Wire Gauge :
- 20-22 AWG
- ELV :
- Compliant
- Gender :
- FEMALE
- Number of Holes :
- 1
- Tongue Thickness :
- 635μm
- Length :
- 19.685mm
- Packaging :
- Bulk
- Thickness :
- 0.023 0.58mm
- Stud/Tab Size :
- 4 Stud
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Length - Overall :
- 0.774 19.66mm
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Not Applicable
- Voltage - Rated AC :
- 300V
- Wire Gauge (Min) :
- 22 AWG
- Material - Insulation :
- Polytetrafluoroethylene (PTFE)
- Used With :
- CONNECTORS MOUNTED TO PANELS
- DIN Conformance :
- No
- Terminal Type :
- Circular
- Heavy Duty :
- No
- Insulation Diameter :
- 0.035 ~ 0.100 (0.89mm ~ 2.54mm)
- Width - Outer Edges :
- 0.281 7.14mm
- Factory Lead Time :
- 17 Weeks
- IEC Conformance :
- No
- Assembly Item Name :
- SCREW ITEM
- Insulated Wire Support :
- yes
- Mounting Option 2 :
- Screw
- Termination :
- Crimp
- MIL Conformance :
- No
- Stud Size :
- M2.5
- Wire Gauge (Max) :
- 20 AWG
- Insulation :
- Insulated
- Stud Diameter :
- 3.0226 mm
- Connector Support Type :
- CONNECTOR ACCESSORY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Contact Material :
- Copper
- Color :
- Green
- Datasheets
- 50831
