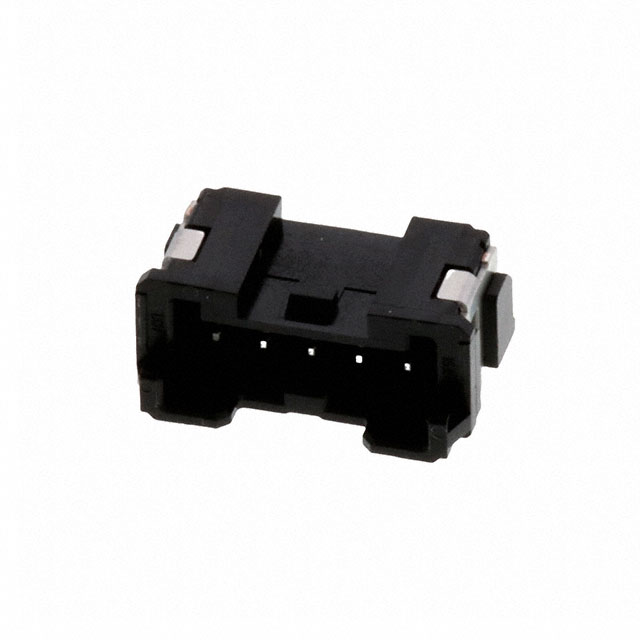

5055780571
Or copy the link below:
- Mfr.Part #
- 5055780571
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 5POS 2MM
- Stock
- 2,349
- In Stock ：
- 2,349
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- RECTANGULAR
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Contact Finish - Mating :
- Tin
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- Varies by WireGAuge
- Feature :
- Solder Retention
- Applications :
- Automotive, General Purpose, Industrial
- Insulation Height :
- 0.232 5.90mm
- Insulation Color :
- Black
- Series :
- Micro-Lock PLUS 505578
- Mounting Type :
- Surface Mount, Right Angle
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 1
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 18 Weeks
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 250VAC/DC
- Operating Temperature :
- -40°C~105°C
- Insulation Material :
- Polyamide (PA), Nylon
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.079 2.00mm
- Connector Type :
- Header
- Packaging :
- Tape and Reel (TR)
- Published :
- 2016
- Number of Positions :
- 5
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 5055780571
5055780571 Documents
Micro-Lock PLUS 505578 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 5-Position Board to Cable/Wire 0.232 5.90mm Height
5055780571 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the Micro-Lock PLUS 505578 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, General Purpose, Industrial.A number of features make the Solder Retention feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
5055780571 Features
Micro-Lock PLUS 505578 series
5055780571 Applications
There are a lot of Molex
5055780571 Rectangular Connectors applications.
