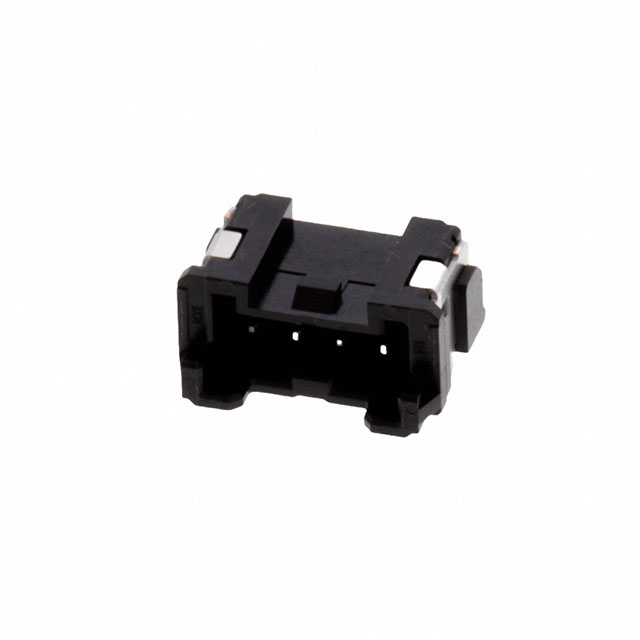

5055780471
Or copy the link below:
- Mfr.Part #
- 5055780471
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 4POS 2MM
- Stock
- 11,658
- In Stock ：
- 11,658
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Mounting Type :
- Surface Mount, Right Angle
- Published :
- 2016
- Insulation Height :
- 0.232 5.90mm
- Number of Positions :
- 4
- Contact Shape :
- RECTANGULAR
- Feature :
- Solder Retention
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Material :
- Polyamide (PA), Nylon
- Series :
- Micro-Lock PLUS 505578
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Packaging :
- Tape and Reel (TR)
- Contact Material :
- Brass
- Number of Rows :
- 1
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 16 Weeks
- Applications :
- Automotive, General Purpose, Industrial
- Style :
- Board to Cable/Wire
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~105°C
- Contact Finish - Mating :
- Tin
- Fastening Type :
- Locking Ramp
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Black
- Voltage - Rated :
- 250VAC/DC
- Pitch - Mating :
- 0.079 2.00mm
- Datasheets
- 5055780471
5055780471 Documents
Micro-Lock PLUS 505578 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.232 5.90mm Height
5055780471 Overview
Packaging is in the form of Header.This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the Micro-Lock PLUS 505578 Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial.Several benefits come from the Solder Retention feature.Devices operate at -40°C~105°C operating temperatures.
5055780471 Features
Micro-Lock PLUS 505578 series
5055780471 Applications
There are a lot of Molex
5055780471 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
