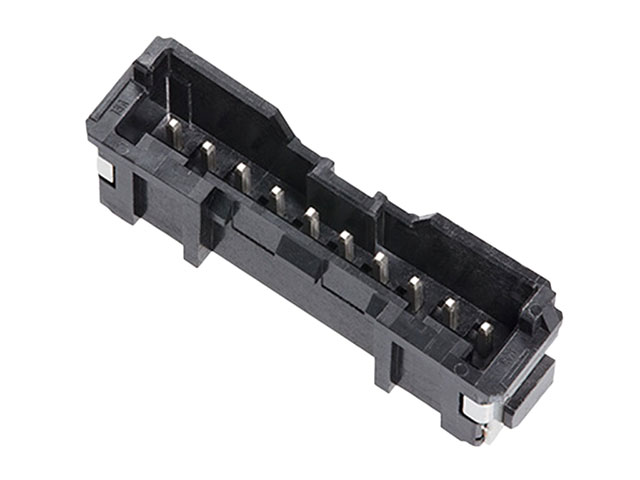

5055751071
Or copy the link below:
- Mfr.Part #
- 5055751071
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 10POS 2MM
- Stock
- 19,388
- In Stock ：
- 19,388
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Number of Positions :
- 10
- Insulation Height :
- 0.339 8.61mm
- Stack Height (Mating) :
- 11.1mm
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Locking Ramp
- Insulation Color :
- Black
- Current Rating (Amps) :
- Varies by WireGAuge
- Packaging :
- Tape and Reel (TR)
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- Applications :
- Automotive, General Purpose, Industrial
- Factory Lead Time :
- 16 Weeks
- Number of Positions Loaded :
- All
- Feature :
- Solder Retention
- Series :
- Micro-Lock PLUS 505575
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Surface Mount
- Voltage - Rated :
- 250VAC/DC
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Brass
- Pitch - Mating :
- 0.079 2.00mm
- Connector Type :
- Header
- Number of Rows :
- 1
- Datasheets
- 5055751071
Micro-Lock PLUS 505575 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 10-Position Board to Cable/Wire 0.339 8.61mm Height
5055751071 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Micro-Lock PLUS 505575 belongs to the Micro-Lock PLUS 505575 Series.In addition to Automotive, General Purpose, Industrial, there are other possible applications for the device.In many ways, it is more powerful due to its Solder Retention feature.This device operates at a temperature of -40°C~105°C.
5055751071 Features
Micro-Lock PLUS 505575 series
5055751071 Applications
There are a lot of Molex
5055751071 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
