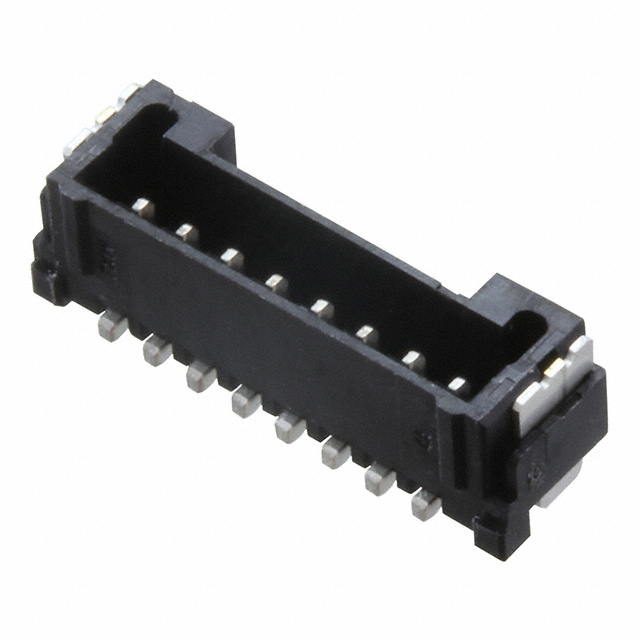

5055680871

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Connector Type :

Header

Mixed Contacts :

No

Packaging :

Tape and Reel (TR)

Termination :

Solder

Filter Feature :

No

ECCN Code :

EAR99

Insulation Height :

0.165 4.20mm

Applications :

Automotive, General Purpose, Industrial

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.049 1.25mm

Contact Material :

Brass

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Operating Temperature :

-40°C~105°C

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Stack Height (Mating) :

7.4mm

Voltage - Rated :

50VAC/DC

Insulation Color :

Black

Number of Positions :

8

Feature :

Solder Retention

Fastening Type :

Push-Pull

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Factory Lead Time :

14 Weeks

Current Rating (Amps) :

Varies by WireGAuge

Contact Finish - Mating :

Tin

Series :

Micro-Lock PLUS 505568

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Reference Standard :

UL

Total Number of Contacts :

8

Published :

2016

Empty Shell :

No

Body Length or Diameter :

0.522 inch

Contact Type :

Male Pin

Contact Finish Thickness - Post :

39.4μin 1.00μm

Contact Shape :

Square

Insulation Material :

Polyamide (PA), Nylon, Glass Filled
