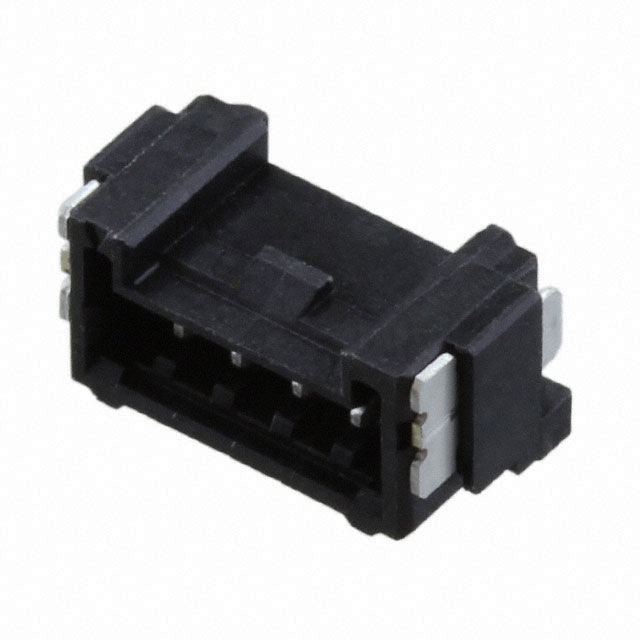

5055680471

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Tin

Number of Rows :

1

Contact Shape :

Square

Connector Type :

Header

Feature :

Solder Retention

Series :

Micro-Lock PLUS 505568

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

Style :

Board to Cable/Wire

Stack Height (Mating) :

7.4mm

RoHS Status :

ROHS3 Compliant

Empty Shell :

yes

Pitch - Mating :

0.049 1.25mm

Published :

2017

Mixed Contacts :

No

Insulation Color :

Black

Reference Standard :

UL

Shrouding :

Shrouded - 4 Wall

Insulation Height :

0.165 4.20mm

Operating Temperature :

-40°C~105°C

ECCN Code :

EAR99

Total Number of Contacts :

4

Current Rating (Amps) :

Varies by WireGAuge

Contact Finish Thickness - Post :

39.4μin 1.00μm

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Shell Material :

Glass Filled Polyamide

Filter Feature :

No

Fastening Type :

Push-Pull

Contact Type :

Male Pin

Number of Positions Loaded :

All

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Contact Material :

Brass

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

50VAC/DC

Number of Positions :

4

Termination :

Solder

Applications :

Automotive, General Purpose, Industrial

Factory Lead Time :

16 Weeks
