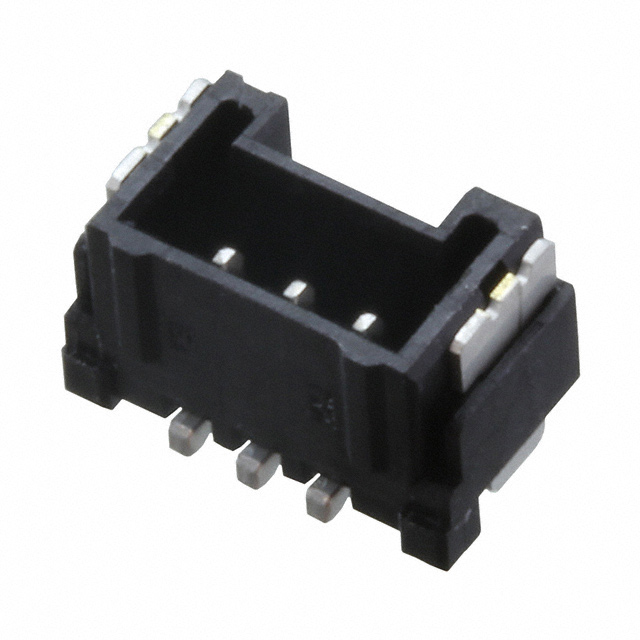

5055680371
Or copy the link below:
- Mfr.Part #
- 5055680371
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 3POS 1.25MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- ECCN Code :
- EAR99
- Pitch - Mating :
- 0.049 1.25mm
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Current Rating (Amps) :
- Varies by WireGAuge
- Mounting Type :
- Surface Mount
- Feature :
- Solder Retention
- Contact Shape :
- Square
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 3
- Contact Finish - Mating :
- Tin
- Voltage - Rated :
- 50VAC/DC
- Contact Material :
- Brass
- Packaging :
- Tape and Reel (TR)
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Applications :
- Automotive, General Purpose, Industrial
- Stack Height (Mating) :
- 7.4mm
- Insulation Color :
- Black
- Series :
- Micro-Lock PLUS 505568
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Fastening Type :
- Push-Pull
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2017
- Number of Rows :
- 1
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.165 4.20mm
- Factory Lead Time :
- 14 Weeks
- Operating Temperature :
- -40°C~105°C
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 5055680371
Micro-Lock PLUS 505568 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon, Glass Filled 3-Position Board to Cable/Wire 0.165 4.20mm Height
5055680371 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Micro-Lock PLUS 505568 belongs to the Micro-Lock PLUS 505568 Series.In addition to Automotive, General Purpose, Industrial, there are other possible applications for the device.In many ways, it is more powerful due to its Solder Retention feature.This device operates at a temperature of -40°C~105°C.
5055680371 Features
Micro-Lock PLUS 505568 series
5055680371 Applications
There are a lot of Molex
5055680371 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
