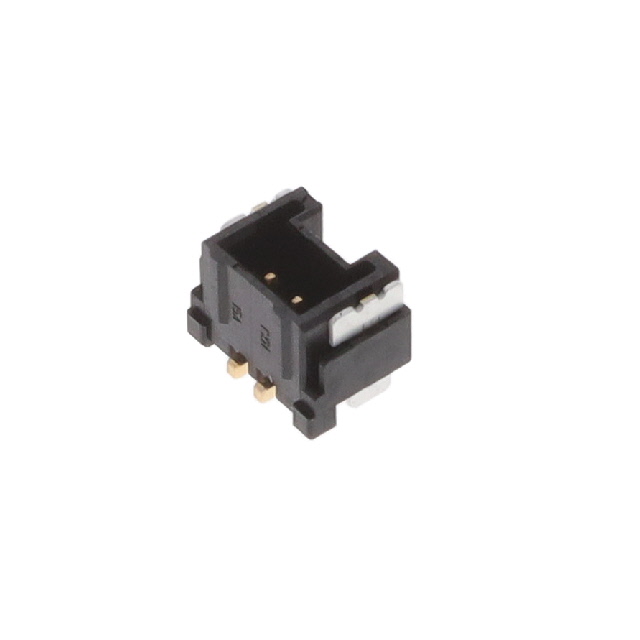

5055680281

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Packaging :

Tape and Reel (TR)

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

1

Insulation Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Pick and Place, Solder Retention

Current Rating (Amps) :

Varies by WireGAuge

Total Number of Contacts :

2

Mating Contact Pitch :

0.049 inch

Insulation Height :

0.165 4.20mm

ECCN Code :

EAR99

Filter Feature :

No

Factory Lead Time :

16 Weeks

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Applications :

Automotive, General Purpose, Industrial

Shrouding :

Shrouded - 4 Wall

Number of Rows :

1

Number of Positions :

2

Operating Temperature :

-40°C~105°C

Connector Type :

Header

Number of Conductors :

ONE

Reference Standard :

UL

Fastening Type :

Push-Pull

Contact Material :

Brass

UL Flammability Code :

94V-0

PCB Contact Pattern :

RECTANGULAR

Style :

Board to Cable/Wire

Mounting Type :

Surface Mount

Empty Shell :

No

Contact Finish - Mating :

Gold

Mixed Contacts :

No

HTS Code :

8536.69.40.30

Stack Height (Mating) :

7.4mm

Contact Shape :

Square

Contact Finish Thickness - Mating :

3.90μin 0.099μm

Contact Finish Thickness - Post :

3.90μin 0.099μm

Contact Type :

Male Pin

Shell Material :

Glass Filled Polyamide

Pitch - Mating :

0.049 1.25mm

Voltage - Rated :

50VAC/DC

Termination :

Solder

Series :

Micro-Lock PLUS 505568

RoHS Status :

ROHS3 Compliant
