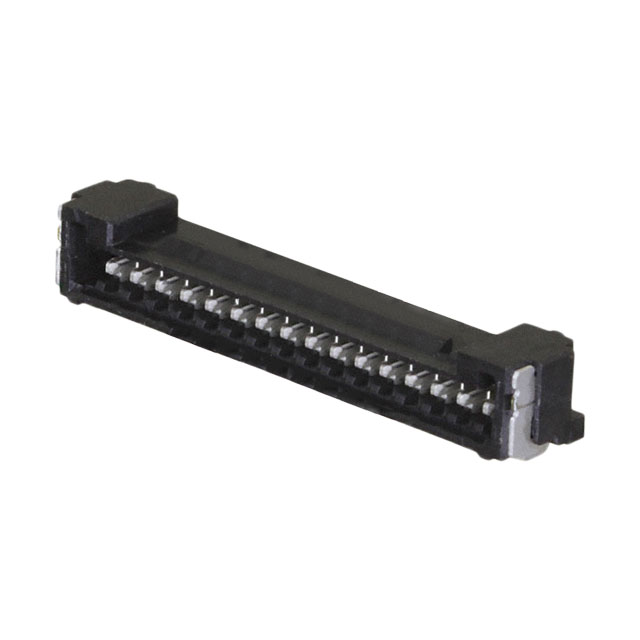

5055671671

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Tin

Insulation Color :

Black

Pitch - Mating :

0.049 1.25mm

Insulation Height :

0.154 3.90mm

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Connector Type :

Header

HTS Code :

8536.69.40.30

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

50VAC/DC

Empty Shell :

No

Contact Finish Thickness - Post :

39.4μin 1.00μm

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Termination :

Solder

Operating Temperature :

-40°C~105°C

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Applications :

Automotive, General Purpose, Industrial

Reference Standard :

UL

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Series :

Micro-Lock PLUS 505567

Filter Feature :

No

Number of Positions :

16

Contact Material :

Brass

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Factory Lead Time :

16 Weeks

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Mounting Type :

Surface Mount, Right Angle

Total Number of Contacts :

16

Contact Shape :

Square

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Current Rating (Amps) :

Varies by WireGAuge

Fastening Type :

Locking Ramp

Feature :

Solder Retention
