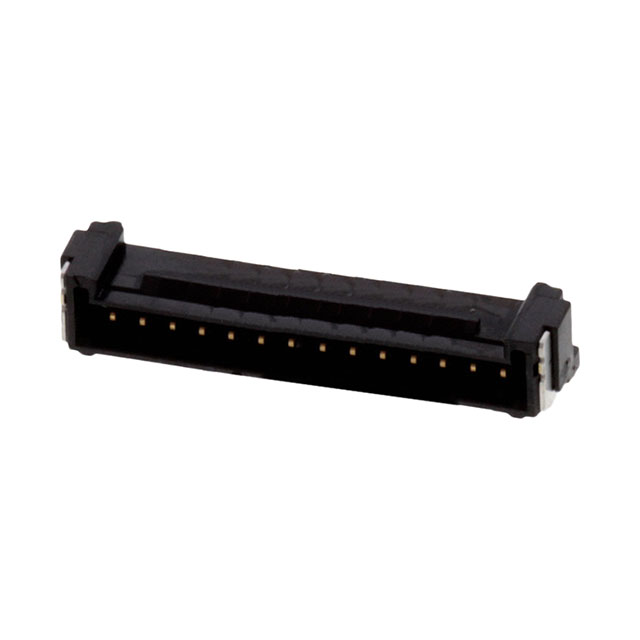

5055671481
Or copy the link below:
- Mfr.Part #
- 5055671481
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 14POS 1.25MM
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Current Rating (Amps) :
- Varies by WireGAuge
- Applications :
- Automotive, General Purpose, Industrial
- Insulation Height :
- 0.154 3.90mm
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Pick and Place, Solder Retention
- Insulation Color :
- Black
- Pitch - Mating :
- 0.049 1.25mm
- Contact Finish Thickness - Post :
- 3.90μin 0.099μm
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Locking Ramp
- Number of Positions :
- 14
- Contact Material :
- Brass
- Mounting Type :
- Surface Mount, Right Angle
- Number of Rows :
- 1
- HTS Code :
- 8536.69.40.30
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- ECCN Code :
- EAR99
- Contact Finish - Mating :
- Gold
- Packaging :
- Tape and Reel (TR)
- Voltage - Rated :
- 50VAC/DC
- Operating Temperature :
- -40°C~105°C
- Termination :
- Solder
- Factory Lead Time :
- 16 Weeks
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Series :
- Micro-Lock PLUS 505567
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Datasheets
- 5055671481
5055671481 Documents
Micro-Lock PLUS 505567 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon, Glass Filled 14-Position Board to Cable/Wire 0.154 3.90mm Height
5055671481 Overview
This product is packaged in a Header box.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Micro-Lock PLUS 505567 Series.There is the possibility of using the device for Automotive, General Purpose, Industrial.In many ways, Pick and Place, Solder Retention makes it more powerful.Operating temperature is set to -40°C~105°C.
5055671481 Features
Micro-Lock PLUS 505567 series
5055671481 Applications
There are a lot of Molex
5055671481 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
