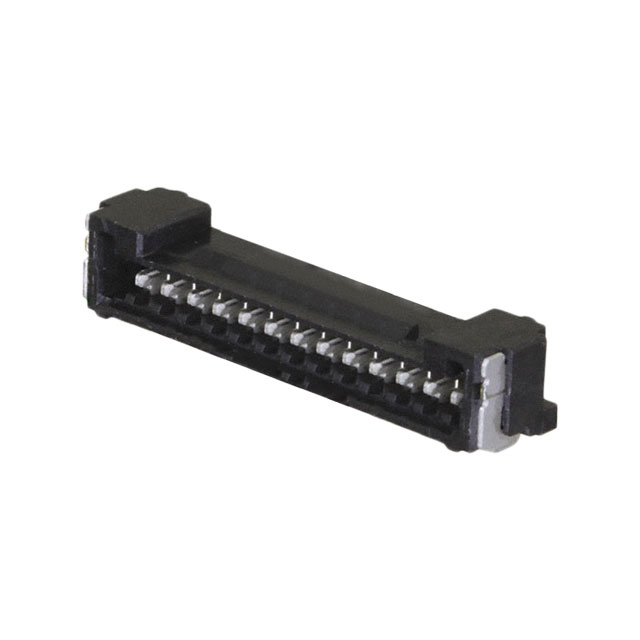

5055671371

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Reference Standard :

UL

Contact Finish - Mating :

Tin

Contact Finish Thickness - Post :

39.4μin 1.00μm

Current Rating (Amps) :

Varies by WireGAuge

Material Flammability Rating :

UL94 V-0

Connector Type :

Header

ECCN Code :

EAR99

Insulation Color :

Black

Operating Temperature :

-40°C~105°C

Applications :

Automotive, General Purpose, Industrial

Contact Material :

Brass

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Micro-Lock PLUS 505567

Packaging :

Tape and Reel (TR)

Number of Positions Loaded :

All

Mounting Type :

Surface Mount, Right Angle

Total Number of Contacts :

13

Contact Shape :

Square

Style :

Board to Cable/Wire

Voltage - Rated :

50VAC/DC

Insulation Height :

0.154 3.90mm

Filter Feature :

No

Body Length or Diameter :

0.768 inch

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.69.40.30

Number of Positions :

13

Number of Rows :

1

Pitch - Mating :

0.049 1.25mm

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Mixed Contacts :

No

Fastening Type :

Locking Ramp

Factory Lead Time :

16 Weeks

Termination :

Solder

Feature :

Solder Retention

Empty Shell :

No

Contact Type :

Male Pin

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Shrouding :

Shrouded - 4 Wall
