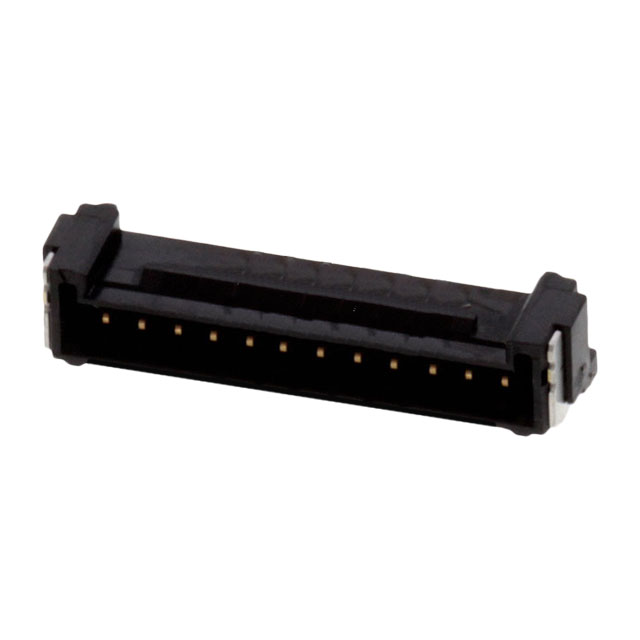

5055671281

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Filter Feature :

No

Feature :

Pick and Place, Solder Retention

Style :

Board to Cable/Wire

Applications :

Automotive, General Purpose, Industrial

Number of Positions :

12

Reference Standard :

UL

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Surface Mount, Right Angle

Insulation Color :

Black

Packaging :

Tape and Reel (TR)

Connector Type :

Header

Number of Rows :

1

Total Number of Contacts :

12

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Contact Type :

Male Pin

PCB Contact Pattern :

RECTANGULAR

Pitch - Mating :

0.049 1.25mm

Termination :

Solder

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

HTS Code :

8536.69.40.30

Insulation Height :

0.154 3.90mm

Mating Contact Pitch :

0.049 inch

Series :

Micro-Lock PLUS 505567

Contact Finish Thickness - Post :

3.90μin 0.099μm

Contact Material :

Brass

Voltage - Rated :

50VAC/DC

Number Of PCB Rows :

1

RoHS Status :

ROHS3 Compliant

Fastening Type :

Locking Ramp

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

Varies by WireGAuge

Contact Shape :

Square

UL Flammability Code :

94V-0

ECCN Code :

EAR99

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Operating Temperature :

-40°C~105°C

Factory Lead Time :

16 Weeks

Contact Finish Thickness - Mating :

3.90μin 0.099μm
