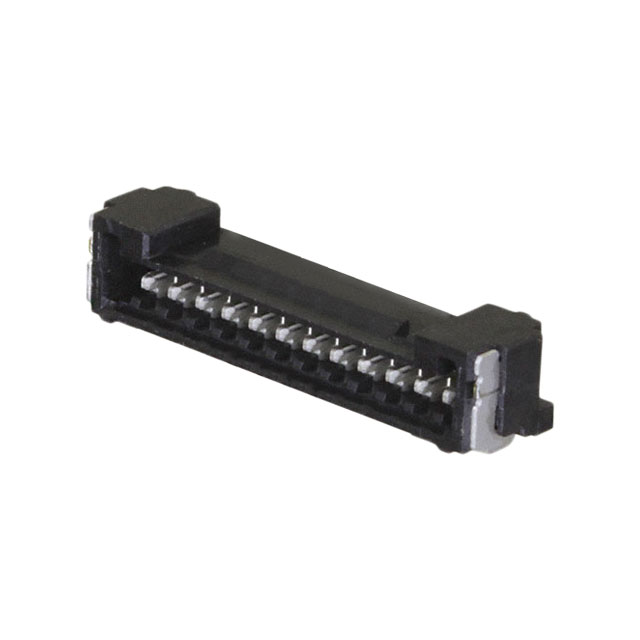

5055671271
Or copy the link below:
- Mfr.Part #
- 5055671271
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 12POS 1.25MM
- Stock
- 41
- In Stock ：
- 41
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Shrouding :
- Shrouded - 4 Wall
- Filter Feature :
- No
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Black
- Mixed Contacts :
- No
- Fastening Type :
- Locking Ramp
- Voltage - Rated :
- 50VAC/DC
- Connector Type :
- Header
- Pitch - Mating :
- 0.049 1.25mm
- Number of Positions :
- 12
- Mounting Type :
- Surface Mount, Right Angle
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.154 3.90mm
- Style :
- Board to Cable/Wire
- Contact Type :
- Male Pin
- ECCN Code :
- EAR99
- Empty Shell :
- No
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Feature :
- Solder Retention
- Factory Lead Time :
- 16 Weeks
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tape and Reel (TR)
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Termination :
- Solder
- Reference Standard :
- UL
- Series :
- Micro-Lock PLUS 505567
- Current Rating (Amps) :
- Varies by WireGAuge
- Total Number of Contacts :
- 12
- Operating Temperature :
- -40°C~105°C
- HTS Code :
- 8536.69.40.30
- Contact Material :
- Brass
- Applications :
- Automotive, General Purpose, Industrial
- Datasheets
- 5055671271
5055671271 Documents
Micro-Lock PLUS 505567 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 12-Position Board to Cable/Wire 0.154 3.90mm Height
5055671271 Overview
You get it in Header packaging.Mounting type Surface Mount, Right Angle is selected for the device.Packaged in a Tape & Reel (TR) case.A member of the Micro-Lock PLUS 505567 Series.Here's a possible application for the device: Automotive, General Purpose, Industrial.This feature renders it more powerful in a number of ways because of its Solder Retention feature.Device runs in -40°C~105°C operating temperature.
5055671271 Features
Micro-Lock PLUS 505567 series
5055671271 Applications
There are a lot of Molex
5055671271 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
