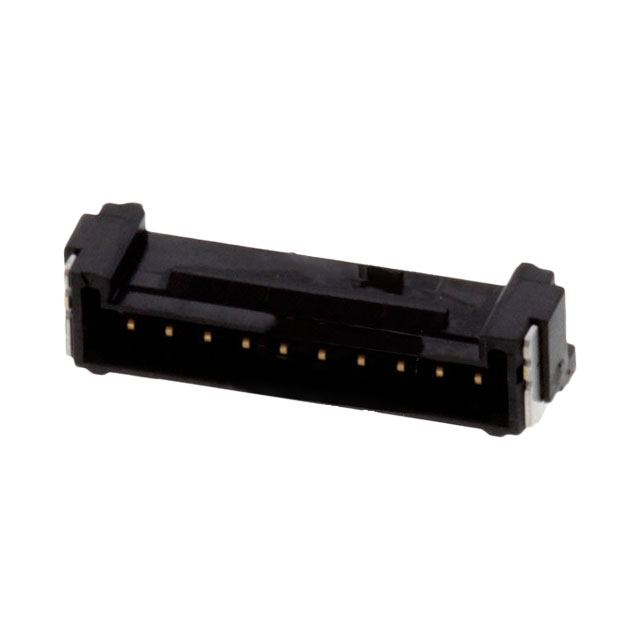

5055671081
Or copy the link below:
- Mfr.Part #
- 5055671081
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 10POS 1.25MM
- Stock
- 8,400
- In Stock ：
- 8,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 16 Weeks
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Contact Type :
- Male Pin
- Fastening Type :
- Locking Ramp
- Shrouding :
- Shrouded - 4 Wall
- Current Rating (Amps) :
- Varies by WireGAuge
- Mounting Type :
- Surface Mount, Right Angle
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~105°C
- Insulation Color :
- Black
- RoHS Status :
- ROHS3 Compliant
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Number of Rows :
- 1
- Applications :
- Automotive, General Purpose, Industrial
- Pitch - Mating :
- 0.049 1.25mm
- Packaging :
- Tape and Reel (TR)
- Connector Type :
- Header
- Series :
- Micro-Lock PLUS 505567
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 3.90μin 0.099μm
- Number of Positions :
- 10
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Insulation Height :
- 0.154 3.90mm
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Feature :
- Pick and Place, Solder Retention
- Contact Finish - Mating :
- Gold
- Voltage - Rated :
- 50VAC/DC
- HTS Code :
- 8536.69.40.30
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Datasheets
- 5055671081
Micro-Lock PLUS 505567 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Polyamide (PA), Nylon, Glass Filled 10-Position Board to Cable/Wire 0.154 3.90mm Height
5055671081 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Micro-Lock PLUS 505567 Series.The device may be used for the following applications: Automotive, General Purpose, Industrial.It is more powerful in many ways due to its Pick and Place, Solder Retention feature.It operates at an operating temperature of -40°C~105°C.
5055671081 Features
Micro-Lock PLUS 505567 series
5055671081 Applications
There are a lot of Molex
5055671081 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
