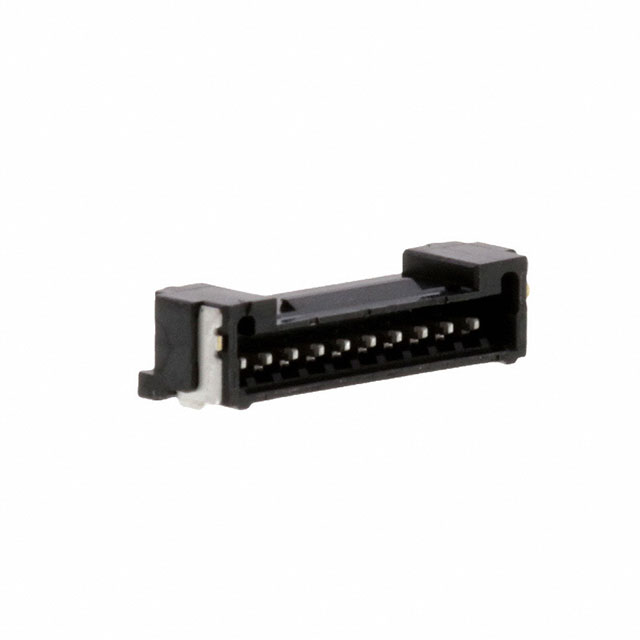

5055671071

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Pitch - Mating :

0.049 1.25mm

Contact Finish Thickness - Post :

39.4μin 1.00μm

Contact Shape :

Square

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

ECCN Code :

EAR99

Style :

Board to Cable/Wire

Contact Finish - Mating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Micro-Lock PLUS 505567

Material Flammability Rating :

UL94 V-0

Connector Type :

Header

Factory Lead Time :

14 Weeks

Number of Rows :

1

Insulation Height :

0.154 3.90mm

Termination :

Solder

HTS Code :

8536.69.40.30

Mixed Contacts :

No

Packaging :

Tape and Reel (TR)

Contact Material :

Brass

Operating Temperature :

-40°C~105°C

Number of Positions Loaded :

All

Empty Shell :

No

Applications :

Automotive, General Purpose, Industrial

Shrouding :

Shrouded - 4 Wall

Filter Feature :

No

Mounting Type :

Surface Mount, Right Angle

Current Rating (Amps) :

Varies by WireGAuge

Body Length or Diameter :

0.62 inch

Total Number of Contacts :

10

Contact Type :

Male Pin

Number of Positions :

10

Fastening Type :

Locking Ramp

RoHS Status :

ROHS3 Compliant

Insulation Color :

Black

Voltage - Rated :

50VAC/DC

Feature :

Solder Retention

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Published :

2016

Reference Standard :

UL
