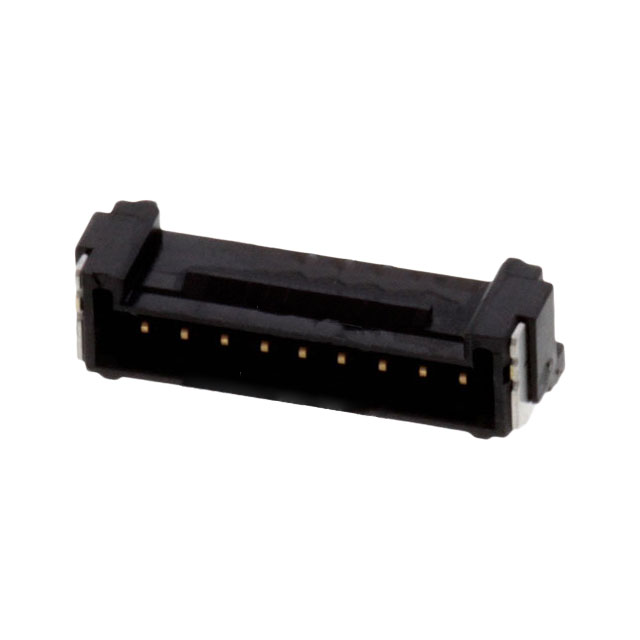

5055670981

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature :

-40°C~105°C

Number of Rows :

1

Insulation Height :

0.154 3.90mm

Contact Shape :

Square

Mounting Type :

Surface Mount, Right Angle

Applications :

Automotive, General Purpose, Industrial

Voltage - Rated :

50VAC/DC

Insulation Color :

Black

Contact Finish Thickness - Mating :

3.90μin 0.099μm

Contact Type :

Male Pin

Number Of PCB Rows :

1

Empty Shell :

No

Style :

Board to Cable/Wire

Mixed Contacts :

No

Number of Conductors :

ONE

Contact Finish - Mating :

Gold

Reference Standard :

UL

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Shrouding :

Shrouded - 4 Wall

Termination :

Solder

Connector Type :

Header

Number of Positions Loaded :

All

Contact Material :

Brass

Factory Lead Time :

16 Weeks

Pitch - Mating :

0.049 1.25mm

Filter Feature :

No

Shell Material :

Glass Filled Polyamide

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Number of Positions :

9

Current Rating (Amps) :

Varies by WireGAuge

Contact Finish Thickness - Post :

3.90μin 0.099μm

Feature :

Pick and Place, Solder Retention

Total Number of Contacts :

9

Material Flammability Rating :

UL94 V-0

Fastening Type :

Locking Ramp

PCB Contact Pattern :

RECTANGULAR

Series :

Micro-Lock PLUS 505567

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
