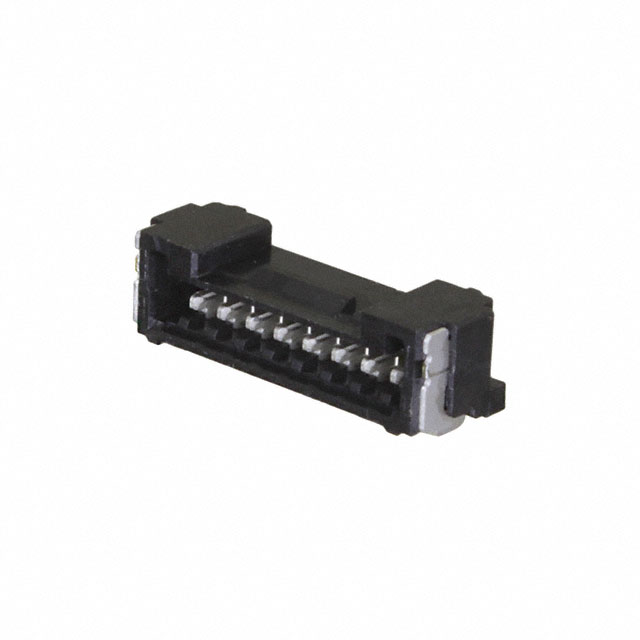

5055670871
Or copy the link below:
- Mfr.Part #
- 5055670871
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 8POS 1.25MM
- Stock
- 15,409
- In Stock ：
- 15,409
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Surface Mount, Right Angle
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Contact Material :
- Brass
- Packaging :
- Tape and Reel (TR)
- ECCN Code :
- EAR99
- Insulation Height :
- 0.154 3.90mm
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Locking Ramp
- Feature :
- Solder Retention
- Series :
- Micro-Lock PLUS 505567
- Applications :
- Automotive, General Purpose, Industrial
- Voltage - Rated :
- 50VAC/DC
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Connector Type :
- Header
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Positions :
- 8
- Number of Rows :
- 1
- Factory Lead Time :
- 13 Weeks
- Contact Shape :
- Square
- Contact Type :
- Male Pin
- Insulation Color :
- Black
- Pitch - Mating :
- 0.049 1.25mm
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Operating Temperature :
- -40°C~105°C
- Published :
- 2016
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 5055670871
5055670871 Documents
Micro-Lock PLUS 505567 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 8-Position Board to Cable/Wire 0.154 3.90mm Height
5055670871 Overview
A Header packaging is included.It's mounted Surface Mount, Right Angle.We use a Tape & Reel (TR) case to package the product.It's from the Micro-Lock PLUS 505567 Series.The device could be used for Automotive, General Purpose, Industrial.In many ways, its Solder Retention feature makes it more powerful.-40°C~105°C Operating Temperature is what the device runs at.
5055670871 Features
Micro-Lock PLUS 505567 series
5055670871 Applications
There are a lot of Molex
5055670871 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
