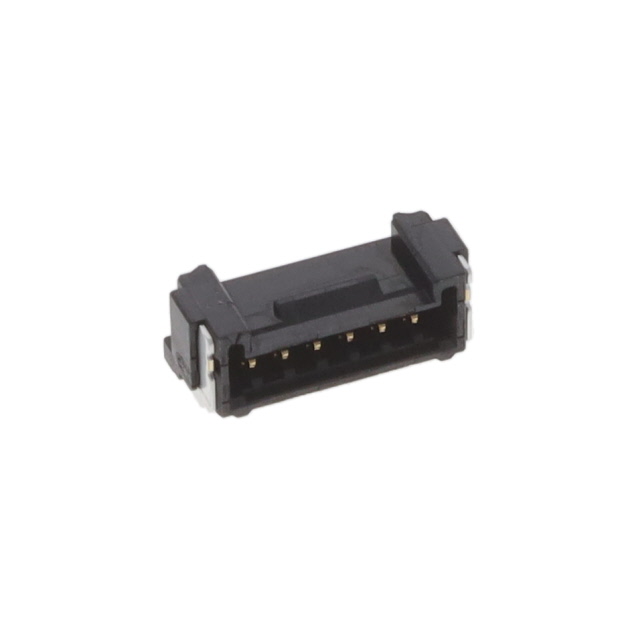

5055670651
Or copy the link below:
- Mfr.Part #
- 5055670651
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.25WB SGL RA ASSY 6CKT EMBPKG B
- Stock
- 4,931
- In Stock ：
- 4,931
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.154 (3.90mm)
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Locking Ramp
- Contact Type :
- Male Pin
- Operating Temperature :
- -40°C ~ 105°C
- Maximum Operating Temperature :
- + 105 C
- Contact Finish Thickness - Mating :
- 30.0µin (0.76µm)
- Minimum Operating Temperature :
- - 40 C
- Series :
- 505567
- Row Spacing - Mating :
- -
- Insulation Color :
- Black
- Pitch :
- 1.25 mm
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 1 Row
- Current Rating (Amps) :
- Varies by Wire Gauge
- Contact Length - Mating :
- -
- Mated Stacking Heights :
- -
- Contact Length - Post :
- -
- Contact Material :
- Brass
- Connector Type :
- Header
- Contact Plating :
- Gold
- Contact Finish Thickness - Post :
- 30.0µin (0.76µm)
- Overall Contact Length :
- -
- Contact Shape :
- Square
- Contact Finish - Post :
- Gold
- Applications :
- Automotive, General Purpose, Industrial
- Base Product Number :
- 505567
- Product Status :
- Active
- Current Rating :
- 1.5 A
- Mounting Angle :
- RIGHT ANGLE
- Features :
- Solder Retention
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Ingress Protection :
- -
- RoHS :
- Details
- Packaging :
- Cut Tape
- Mounting Type :
- Surface Mount, Right Angle
- Voltage Rating :
- 50 VAC/DC
- Number of Positions :
- 6 Position
- Pitch - Mating :
- 0.049 (1.25mm)
- Contact Finish - Mating :
- Gold
- Datasheets
- 5055670651
1 Row Rows Header Cut Tape 6 Position Positions Surface Mount, Right Angle Male Pin 505567
505567-0651 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Cut Tape case is used.The product is a member of the 505567 Series.
505567-0651 Features
505567 series
505567-0651 Applications
There are a lot of Molex
505567-0651 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
