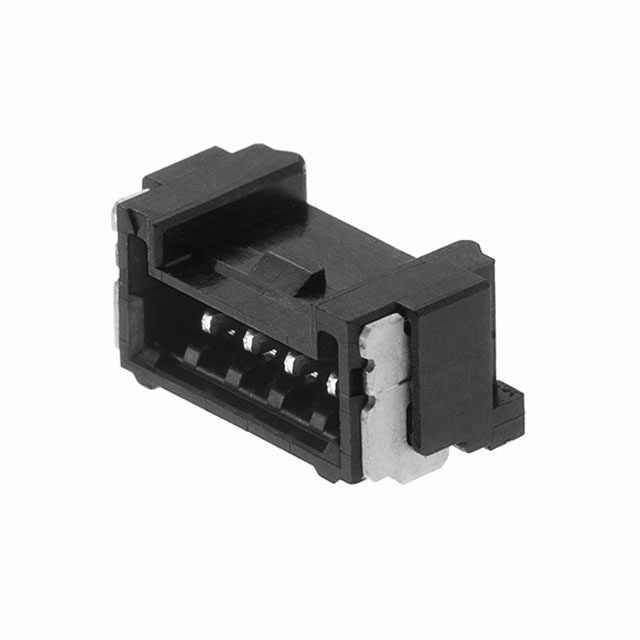

5055670481

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Applications :

Automotive, General Purpose, Industrial

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

Gold

Insulation Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

4

Mounting Type :

Surface Mount, Right Angle

Reference Standard :

UL

Empty Shell :

No

Pitch - Mating :

0.049 1.25mm

Fastening Type :

Locking Ramp

Feature :

Pick and Place, Solder Retention

Contact Finish Thickness - Mating :

3.90μin 0.099μm

Mixed Contacts :

No

Operating Temperature :

-40°C~105°C

Connector Type :

Header

Contact Shape :

Square

Number of Positions Loaded :

All

Contact Material :

Brass

Series :

Micro-Lock PLUS 505567

Current Rating (Amps) :

Varies by WireGAuge

Packaging :

Tape and Reel (TR)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

ECCN Code :

EAR99

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

14 Weeks

Termination :

Solder

Contact Finish Thickness - Post :

3.90μin 0.099μm

Contact Type :

Male Pin

RoHS Status :

ROHS3 Compliant

Insulation Height :

0.154 3.90mm

Filter Feature :

No

Voltage - Rated :

50VAC/DC

Total Number of Contacts :

4

Body Length or Diameter :

0.325 inch

Number of Rows :

1

Style :

Board to Cable/Wire
