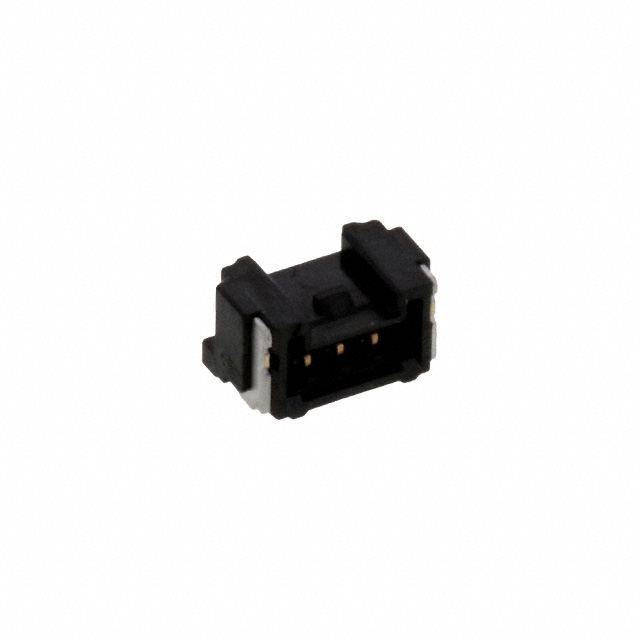

5055670381

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Body Length or Diameter :

0.276 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass

RoHS Status :

ROHS3 Compliant

Reference Standard :

UL

Empty Shell :

No

Contact Finish Thickness - Mating :

3.90μin 0.099μm

Contact Finish - Mating :

Gold

Mounting Type :

Surface Mount, Right Angle

Voltage - Rated :

50VAC/DC

Insulation Height :

0.154 3.90mm

Factory Lead Time :

16 Weeks

Connector Type :

Header

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Mixed Contacts :

No

Pitch - Mating :

0.049 1.25mm

Applications :

Automotive, General Purpose, Industrial

Contact Finish Thickness - Post :

3.90μin 0.099μm

Shrouding :

Shrouded - 4 Wall

Total Number of Contacts :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~105°C

ECCN Code :

EAR99

Insulation Color :

Black

Number of Positions :

3

Packaging :

Tape and Reel (TR)

Published :

2016

Number of Rows :

1

Current Rating (Amps) :

Varies by WireGAuge

Fastening Type :

Locking Ramp

Feature :

Pick and Place, Solder Retention

Filter Feature :

No

Series :

Micro-Lock PLUS 505567

Contact Shape :

Square

Style :

Board to Cable/Wire

Contact Type :

Male Pin

Number of Positions Loaded :

All
