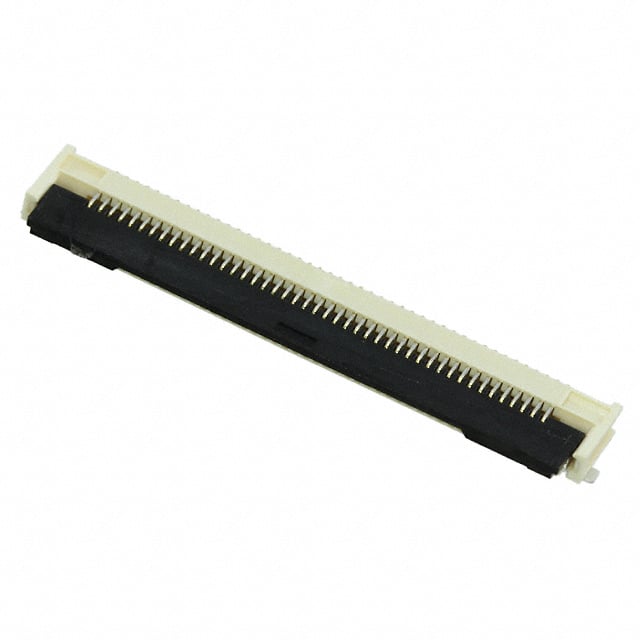

5051104591

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Series :

Easy-On FD19 505110

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Withdrawl Force-Min :

ZIF N

DIN Conformance :

No

Contact Finish :

Gold

Housing Color :

Beige

Insulation Resistance :

50000000Ohm

Filter Feature :

No

Reference Standard :

UL

MIL Conformance :

No

Height Above Board :

0.075 1.90mm

Actuator Color :

Black

Current Rating (Amps) :

0.5A

Voltage - Rated :

50V

Plating Thickness :

2μin

Pitch :

0.020 0.50mm

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

17 Weeks

Connector Type :

FFC/FPC CONNECTOR

Mixed Contacts :

No

Insertion Force-Max :

ZIF N

Number of Positions :

45

Connector/Contact Type :

Contacts, Bottom

Durability :

10 Cycles

Reliability :

COMMERCIAL

Locking Feature :

Flip Lock

Contact Style :

BELLOWED TYPE

FFC, FCB Thickness :

0.30mm

RoHS Status :

ROHS3 Compliant

Body Breadth :

0.075 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~105°C

Body Depth :

0.159 inch

Termination :

Solder

Mounting Option 1 :

LOCKING

Material Flammability Rating :

UL94 V-0

Cable End Type :

Tabbed, Tapered

Body Length or Diameter :

1.071 inch

Contact Pattern :

RECTANGULAR

Board Mounting Option :

FITTING NAIL

Contact Material :

Phosphor Bronze

Contact Resistance :

40mOhm

Mating Cycles :

25

IEC Conformance :

No

Mounting Type :

Surface Mount, Right Angle

Published :

2015

Total Number of Contacts :

45

Number Of PCB Rows :

1

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

Number of Rows :

1

Packaging :

Tape and Reel (TR)

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Additional Feature :

EASY-ON, POLARIZED

Flat Flex Type :

FFC, FPC

Contact Finish Thickness :

1.97μin 0.050μm

Option :

GENERAL PURPOSE

Contact Gender :

FEMALE
