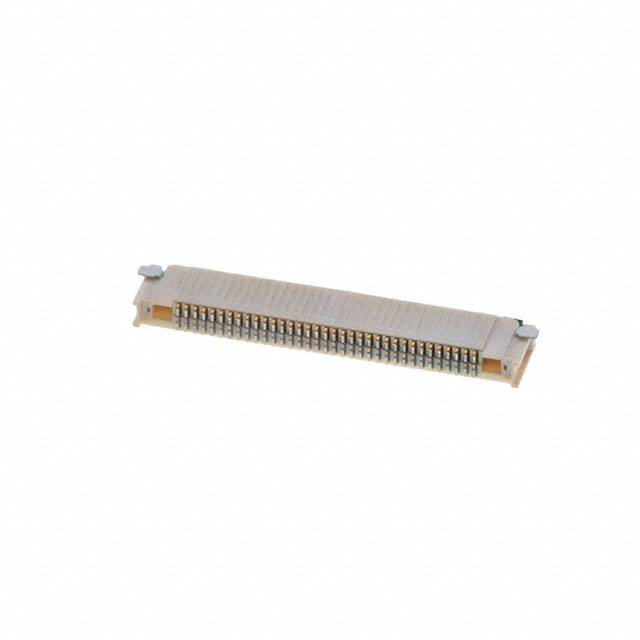

5051103591
Or copy the link below:
- Mfr.Part #
- 5051103591
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC/FPC BOTTOM 35P .5MM R/A
- Stock
- 17,962
- In Stock ：
- 17,962
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Body Depth :
- 0.159 inch
- Plating Thickness :
- 2μin
- Mating Cycles :
- 25
- Operating Temperature :
- -40°C~105°C
- Mixed Contacts :
- No
- Contact Finish Thickness :
- 1.97μin 0.050μm
- Number of Positions :
- 35
- Cable End Type :
- Tabbed, Tapered
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Filter Feature :
- No
- Contact Gender :
- FEMALE
- FFC, FCB Thickness :
- 0.30mm
- Actuator Color :
- Black
- Total Number of Contacts :
- 35
- Contact Style :
- BELLOWED TYPE
- JESD-609 Code :
- e4
- Number of Rows :
- 1
- Current Rating (Amps) :
- 0.5A
- Housing Color :
- Beige
- Pbfree Code :
- No
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Reference Standard :
- UL
- Contact Pattern :
- RECTANGULAR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 40mOhm
- Board Mounting Option :
- FITTING NAIL
- UL Flammability Code :
- 94V-0
- Durability :
- 10 Cycles
- Connector/Contact Type :
- Contacts, Bottom
- Voltage - Rated :
- 50V
- Connector Type :
- FFC/FPC CONNECTOR
- PCB Contact Pattern :
- RECTANGULAR
- Height Above Board :
- 0.075 1.90mm
- Flat Flex Type :
- FFC, FPC
- Mounting Option 1 :
- LOCKING
- Mounting Type :
- Surface Mount, Right Angle
- DIN Conformance :
- No
- Body Breadth :
- 0.075 inch
- Insertion Force-Max :
- ZIF N
- MIL Conformance :
- No
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- RoHS Status :
- Non-RoHS Compliant
- Locking Feature :
- Flip Lock
- Termination :
- Solder
- Published :
- 2015
- Reliability :
- COMMERCIAL
- Body Length or Diameter :
- 0.874 inch
- Number Of PCB Rows :
- 1
- Factory Lead Time :
- 17 Weeks
- Insulation Resistance :
- 50000000Ohm
- IEC Conformance :
- No
- Contact Material :
- Phosphor Bronze
- Packaging :
- Tape and Reel (TR)
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Finish :
- Gold
- Series :
- Easy-On FD19 505110
- Pitch :
- 0.020 0.50mm
- Datasheets
- 5051103591
Easy-On FD19 505110 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 35 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A
5051103591 Overview
A FFC/FPC CONNECTOR package is included with it.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Easy-On FD19 505110 Series.In many ways, Solder Retention, Zero Insertion Force (ZIF) makes it more powerful.Operating temperature is set to -40°C~105°C.
5051103591 Features
Easy-On FD19 505110 series
5051103591 Applications
There are a lot of Molex
5051103591 FFC, FPC (Flat Flexible) Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
