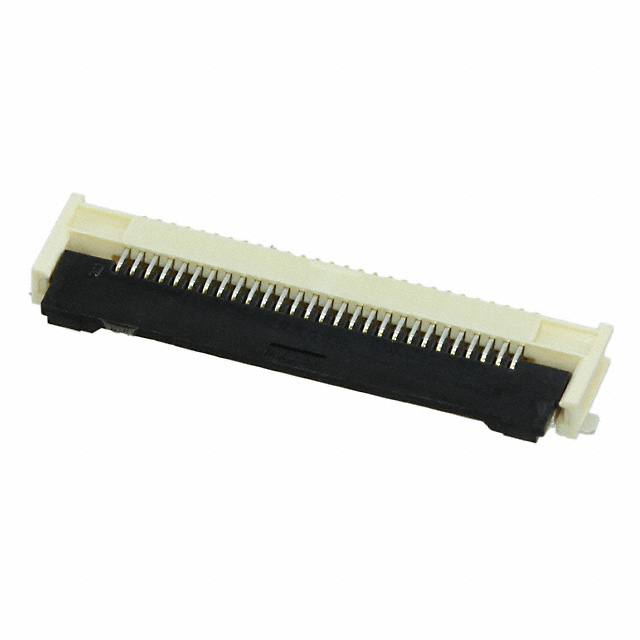

5051102891

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Material Flammability Rating :

UL94 V-0

Locking Feature :

Flip Lock

Series :

Easy-On FD19 505110

Mounting Option 1 :

LOCKING

Body Breadth :

0.075 inch

Connector Type :

FFC/FPC CONNECTOR

Factory Lead Time :

17 Weeks

Filter Feature :

No

Plating Thickness :

2μin

Mounting Type :

Surface Mount, Right Angle

JESD-609 Code :

e4

Total Number of Contacts :

28

Durability :

10 Cycles

Height Above Board :

0.075 1.90mm

Insertion Force-Max :

ZIF N

Housing Color :

Beige

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Flat Flex Type :

FFC, FPC

Voltage - Rated :

50V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Reference Standard :

UL

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Contact Material :

Phosphor Bronze

Connector/Contact Type :

Contacts, Bottom

Board Mounting Option :

FITTING NAIL

Contact Pattern :

RECTANGULAR

Insulation Resistance :

50000000Ohm

Reliability :

COMMERCIAL

DIN Conformance :

No

Pitch :

0.020 0.50mm

IEC Conformance :

No

Body Depth :

0.159 inch

Cable End Type :

Tabbed, Tapered

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

Termination :

Solder

Contact Style :

BELLOWED TYPE

FFC, FCB Thickness :

0.30mm

Mating Cycles :

25

Current Rating (Amps) :

0.5A

Published :

2015

Contact Finish Thickness :

1.97μin 0.050μm

UL Flammability Code :

94V-0

Contact Gender :

FEMALE

Number of Positions :

28

Mixed Contacts :

No

Pbfree Code :

yes

Packaging :

Tape and Reel (TR)

Contact Finish :

Gold

Contact Resistance :

40mOhm

Body Length or Diameter :

0.736 inch

Operating Temperature :

-40°C~105°C

Actuator Color :

Black

Number Of PCB Rows :

1

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant
