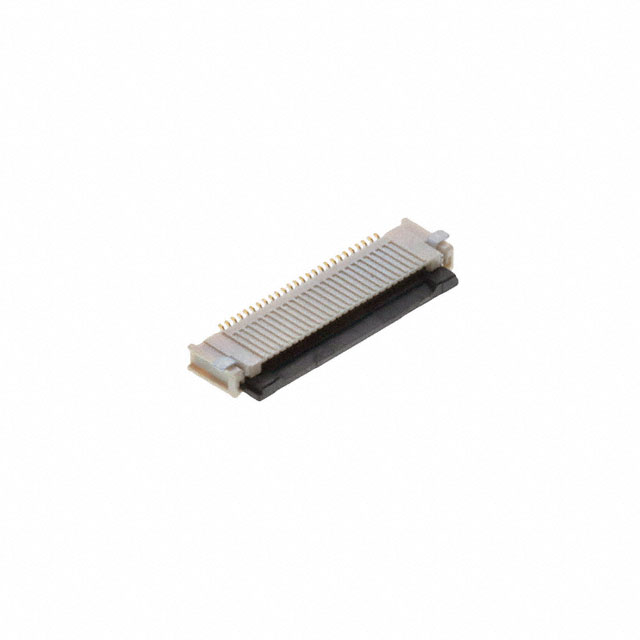

5051102691

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

MIL Conformance :

No

Body Depth :

0.159 inch

Mounting Type :

Surface Mount, Right Angle

Contact Resistance :

40mOhm

Operating Temperature :

-40°C~105°C

Body Breadth :

0.075 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Plating Thickness :

2μin

Voltage - Rated :

50V

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Cable End Type :

Tabbed, Tapered

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

Contact Pattern :

RECTANGULAR

Reference Standard :

UL

Insertion Force-Max :

ZIF N

Number of Positions :

26

Height Above Board :

0.075 1.90mm

PCB Contact Pattern :

RECTANGULAR

Contact Finish :

Gold

Contact Material :

Phosphor Bronze

Total Number of Contacts :

26

Number Of PCB Rows :

1

JESD-609 Code :

e4

Contact Gender :

FEMALE

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

Current Rating (Amps) :

0.5A

Flat Flex Type :

FFC, FPC

Mixed Contacts :

No

Contact Style :

BELLOWED TYPE

Published :

2015

IEC Conformance :

No

Series :

Easy-On FD19 505110

RoHS Status :

Non-RoHS Compliant

Connector Type :

FFC/FPC CONNECTOR

Termination :

Solder

Mating Cycles :

25

Filter Feature :

No

Housing Color :

Beige

Factory Lead Time :

17 Weeks

Board Mounting Option :

FITTING NAIL

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

FFC, FCB Thickness :

0.30mm

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Mounting Option 1 :

LOCKING

Insulation Resistance :

50000000Ohm

Durability :

10 Cycles

DIN Conformance :

No

Locking Feature :

Flip Lock

Connector/Contact Type :

Contacts, Bottom

Actuator Color :

Black

Pbfree Code :

No

Packaging :

Tape and Reel (TR)

Pitch :

0.020 0.50mm

Contact Finish Thickness :

1.97μin 0.050μm

UL Flammability Code :

94V-0

Body Length or Diameter :

0.697 inch
