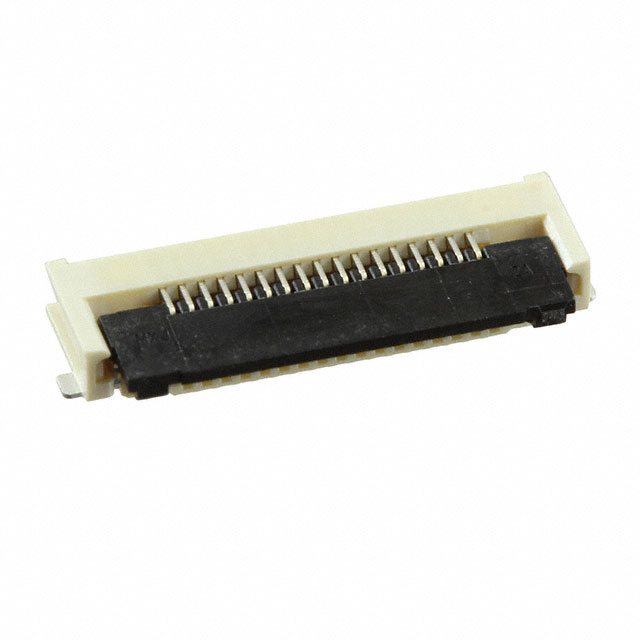

5051101792
Or copy the link below:
- Mfr.Part #
- 5051101792
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC BOTTOM 17POS .5MM R/A
- Stock
- 19,578
- In Stock ：
- 19,578
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Actuator Color :
- Black
- UL Flammability Code :
- 94V-0
- MIL Conformance :
- No
- IEC Conformance :
- No
- Contact Finish :
- Gold
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Flat Flex Type :
- FFC, FPC
- Pitch :
- 0.020 0.50mm
- Current Rating (Amps) :
- 0.5A
- Mixed Contacts :
- No
- Mating Information :
- No
- Number of Positions :
- 17
- Cable End Type :
- Tabbed, Tapered
- Height Above Board :
- 0.075 1.90mm
- Contact Gender :
- FEMALE
- Mounting Type :
- Surface Mount, Right Angle
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Housing Color :
- Beige
- Voltage - Rated :
- 50V
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Option :
- GENERAL PURPOSE
- Mating Cycles :
- 25
- Operating Temperature :
- -40°C~105°C
- Connector Type :
- FFC/FPC CONNECTOR
- Factory Lead Time :
- 17 Weeks
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Phosphor Bronze
- Locking Feature :
- Flip Lock, Backlock
- Filter Feature :
- No
- Connector/Contact Type :
- Contacts, Bottom
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Total Number of Contacts :
- 17
- JESD-609 Code :
- e4
- Contact Finish Thickness :
- 1.97μin 0.050μm
- Published :
- 2015
- DIN Conformance :
- No
- Termination :
- Solder
- Series :
- Easy-On FD19 505110
- FFC, FCB Thickness :
- 0.30mm
- ECCN Code :
- EAR99
- Datasheets
- 5051101792
Easy-On FD19 505110 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 17 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A
5051101792 Overview
The product comes in a package of FFC/FPC CONNECTOR.Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the Easy-On FD19 505110 Series of products.A number of features make it more powerful because of its Solder Retention, Zero Insertion Force (ZIF) feature.There is no operating temperature for the device.
5051101792 Features
Easy-On FD19 505110 series
5051101792 Applications
There are a lot of Molex
5051101792 FFC, FPC (Flat Flexible) Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
