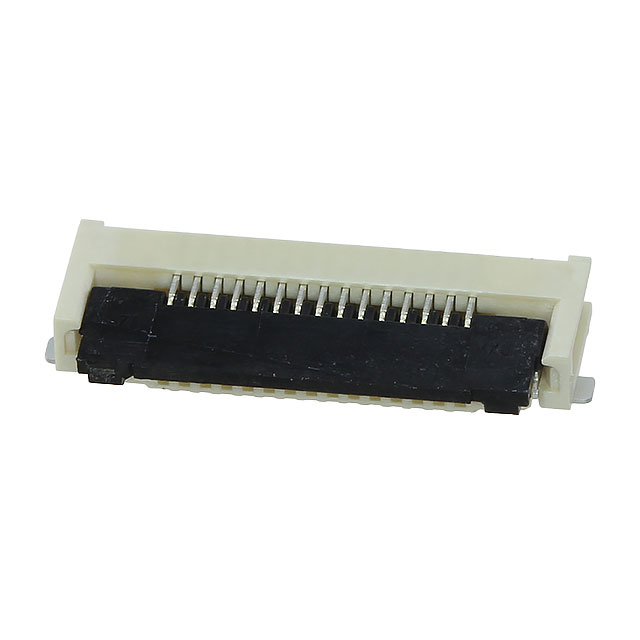

5051101592
Or copy the link below:
- Mfr.Part #
- 5051101592
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC BOTTOM 15POS .5MM R/A
- Stock
- 13,330
- In Stock ：
- 13,330
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Contact Material :
- Phosphor Bronze
- Current Rating (Amps) :
- 0.5A
- Cable End Type :
- Tabbed, Tapered
- Mounting Type :
- Surface Mount, Right Angle
- Locking Feature :
- Flip Lock, Backlock
- Mating Cycles :
- 25
- Number of Positions :
- 15
- Operating Temperature :
- -40°C~105°C
- Connector/Contact Type :
- Contacts, Bottom
- Contact Finish Thickness :
- 1.97μin 0.050μm
- Series :
- Easy-On FD19 505110
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Voltage - Rated :
- 50V
- Pitch :
- 0.020 0.50mm
- Contact Finish :
- Gold
- Height Above Board :
- 0.075 1.90mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2015
- RoHS Status :
- ROHS3 Compliant
- Actuator Color :
- Black
- Termination :
- Solder
- FFC, FCB Thickness :
- 0.30mm
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 17 Weeks
- Packaging :
- Tape and Reel (TR)
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Flat Flex Type :
- FFC, FPC
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Housing Color :
- Beige
- Datasheets
- 5051101592
Easy-On FD19 505110 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 15 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A
5051101592 Overview
It's mounted Surface Mount, Right Angle.We use a Tape & Reel (TR) case to package the product.It's from the Easy-On FD19 505110 Series.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.-40°C~105°C Operating Temperature is what the device runs at.
5051101592 Features
Easy-On FD19 505110 series
5051101592 Applications
There are a lot of Molex
5051101592 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
