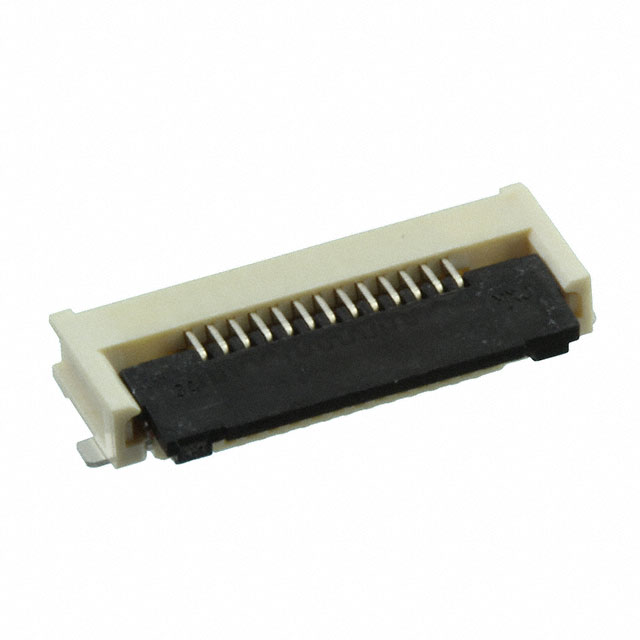

5051101392
Or copy the link below:
- Mfr.Part #
- 5051101392
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC BOTTOM 13POS .5MM R/A
- Stock
- 2,400
- In Stock ：
- 2,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Height Above Board :
- 0.075 1.90mm
- Series :
- Easy-On FD19 505110
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 13
- Mating Cycles :
- 25
- Cable End Type :
- Tabbed, Tapered
- Locking Feature :
- Flip Lock, Backlock
- Packaging :
- Tape and Reel (TR)
- Current Rating (Amps) :
- 0.5A
- Actuator Color :
- Black
- Published :
- 2015
- Contact Finish Thickness :
- 1.97μin 0.050μm
- Connector/Contact Type :
- Contacts, Bottom
- Operating Temperature :
- -40°C~105°C
- Housing Color :
- Beige
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Voltage - Rated :
- 50V
- Factory Lead Time :
- 17 Weeks
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- FFC, FCB Thickness :
- 0.30mm
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Pitch :
- 0.020 0.50mm
- Mounting Type :
- Surface Mount, Right Angle
- Contact Material :
- Phosphor Bronze
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Flat Flex Type :
- FFC, FPC
- Datasheets
- 5051101392
Easy-On FD19 505110 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 13 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A
5051101392 Overview
The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the Easy-On FD19 505110 Series, it belongs to the range of products of that series.A number of features make the Solder Retention, Zero Insertion Force (ZIF) feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
5051101392 Features
Easy-On FD19 505110 series
5051101392 Applications
There are a lot of Molex
5051101392 FFC, FPC (Flat Flexible) Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
