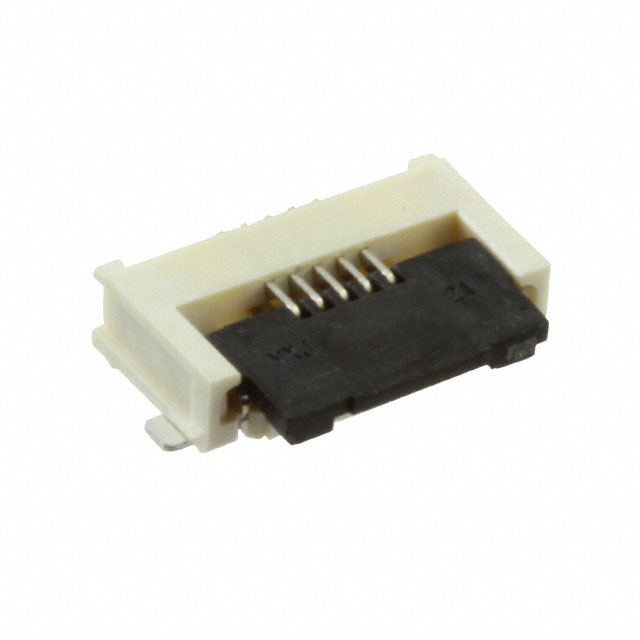

5051100592
Or copy the link below:
- Mfr.Part #
- 5051100592
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC BOTTOM 5POS .5MM R/A
- Stock
- 14,400
- In Stock ：
- 14,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Filter Feature :
- No
- Height Above Board :
- 0.075 1.90mm
- Total Number of Contacts :
- 5
- Pitch :
- 0.020 0.50mm
- DIN Conformance :
- No
- ECCN Code :
- EAR99
- JESD-609 Code :
- e4
- Contact Gender :
- FEMALE
- Mounting Type :
- Surface Mount, Right Angle
- Voltage - Rated :
- 50V
- Option :
- GENERAL PURPOSE
- UL Flammability Code :
- 94V-0
- Pbfree Code :
- yes
- Packaging :
- Tape and Reel (TR)
- Contact Finish :
- Gold
- Factory Lead Time :
- 17 Weeks
- Published :
- 2015
- Termination :
- Solder
- Contact Finish Thickness :
- 1.97μin 0.050μm
- MIL Conformance :
- No
- Series :
- Easy-On FD19 505110
- Number of Rows :
- 1
- Mating Information :
- No
- IEC Conformance :
- No
- Number of Positions :
- 5
- Contact Material :
- Phosphor Bronze
- Connector/Contact Type :
- Contacts, Bottom
- Actuator Color :
- Black
- Connector Type :
- FFC/FPC CONNECTOR
- Material Flammability Rating :
- UL94 V-0
- FFC, FCB Thickness :
- 0.30mm
- Operating Temperature :
- -40°C~105°C
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Current Rating (Amps) :
- 0.5A
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature :
- Flip Lock, Backlock
- Mating Cycles :
- 25
- Cable End Type :
- Tabbed, Tapered
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Flat Flex Type :
- FFC, FPC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- Housing Color :
- Beige
- Datasheets
- 5051100592
5051100592 Documents
Easy-On FD19 505110 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 5 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A
5051100592 Overview
The packaging contains FFC/FPC CONNECTOR.This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Easy-On FD19 505110 Series.There are a number of advantages to its Solder Retention, Zero Insertion Force (ZIF) feature.As a result, the device runs at -40°C~105°C Operating Temperature.
5051100592 Features
Easy-On FD19 505110 series
5051100592 Applications
There are a lot of Molex
5051100592 FFC, FPC (Flat Flexible) Connectors applications.
