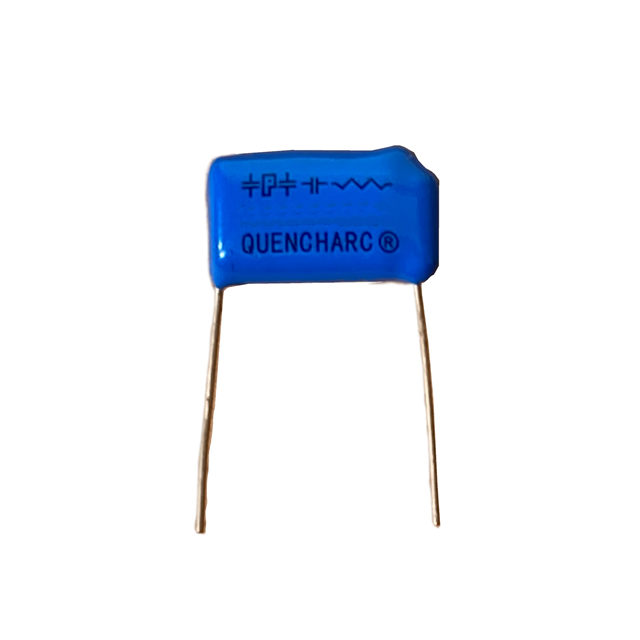

504M02QA100

Manufacturer :

Quantic™ Paktron

Product Category :

EMI/RFI Filters (LC, RC Networks)

RoHS Status :

ROHS3 Compliant

Tolerance :

20%

Life (Hours) :

500 hours

Capacitance :

500nF

Resistance :

100Ohm

Type :

Low Pass

Pbfree Code :

yes

Lead Pitch :

20.8mm

Mounting Type :

Through Hole

Height :

0.892 22.65mm

Size / Dimension :

1.079Lx0.370W 27.40mmx9.40mm

Rated Power Dissipation (P) :

0.5W

Voltage - Rated AC :

125V

REACH SVHC :

No SVHC

ESD Protection :

No

Terminal Shape :

Wire

Published :

2006

Packaging :

Bulk

Values :

R = 100 Ω, C = 0.50μF

Resistance - Channel (Ω) :

100

Dielectric Material :

Polyester

Series :

Quencharc®

Number of Resistors :

1

Factory Lead Time :

17 Weeks

Operating Temperature :

-55°C~85°C

Terminal Pitch :

20.8mm

Number of Capacitors :

1

Applications :

GENERAL PURPOSE

Package / Case :

Radial

Number of RC Elements :

1

Voltage - Rated DC :

200V

JESD-609 Code :

e3

Filter Order :

1st

Thickness :

9.398mm

Lead Length :

21.6mm

Mount :

DIN Rail

Terminal Finish :

Tin (Sn)

Dielectric :

PET

ESR (Equivalent Series Resistance) :

100Ohm

Number of Functions :

1

Number of Pins :

2

Depth :

9.4mm

Number of Terminations :

2

Voltage :

630V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Channels :

1
