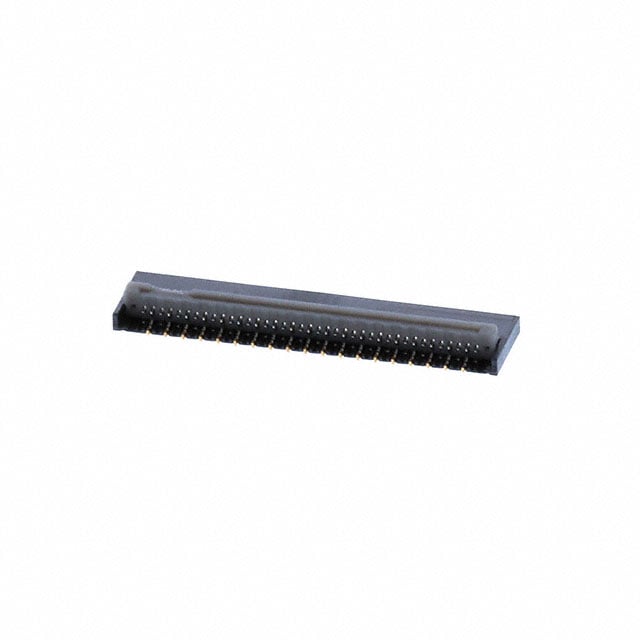

5047543920
Or copy the link below:
- Mfr.Part #
- 5047543920
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 39POS .3MM SMD R/A
- Stock
- 4,976
- In Stock ：
- 4,976
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Termination :
- Solder
- Number of Positions :
- 39
- Series :
- BackFlip, Easy-On 504754
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Pitch :
- 0.012 0.30mm
- Locking Feature :
- Flip Lock, Backlock
- Connector/Contact Type :
- Contacts, Top and Bottom
- REACH SVHC :
- No SVHC
- Flat Flex Type :
- FPC
- RoHS Status :
- ROHS3 Compliant
- Halogen Free :
- Low Halogen
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Cable End Type :
- Tapered
- Orientation :
- RIGHT ANGLE
- Number of Pins :
- 41
- Mount :
- Surface Mount
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Voltage - Rated :
- 50V
- Pbfree Code :
- No
- Operating Temperature :
- -40°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Height Above Board :
- 0.030 0.75mm
- Mounting Type :
- Surface Mount, Right Angle
- Factory Lead Time :
- 13 Weeks
- Housing Color :
- Black
- FFC, FCB Thickness :
- 0.20mm
- Current Rating (Amps) :
- 0.2A
- Contact Material :
- COPPER ALLOY
- Actuator Color :
- Gray
- Flammability Rating :
- UL94 V-0
- Mating Cycles :
- 10
- Contact Finish :
- Gold
- Published :
- 2015
- Packaging :
- Tape and Reel (TR)
- Current Rating :
- 200mA
- Datasheets
- 5047543920
BackFlip, Easy-On 504754 Series FPC Contacts, Top and Bottom Tape & Reel (TR) 0.012 0.30mm Solder 39 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.2A
5047543920 Overview
This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the BackFlip, Easy-On 504754 Series.There are 41 pins on the device.There is a mounting hole at Surface Mount.Devices operate at -40°C~85°C operating temperatures.
