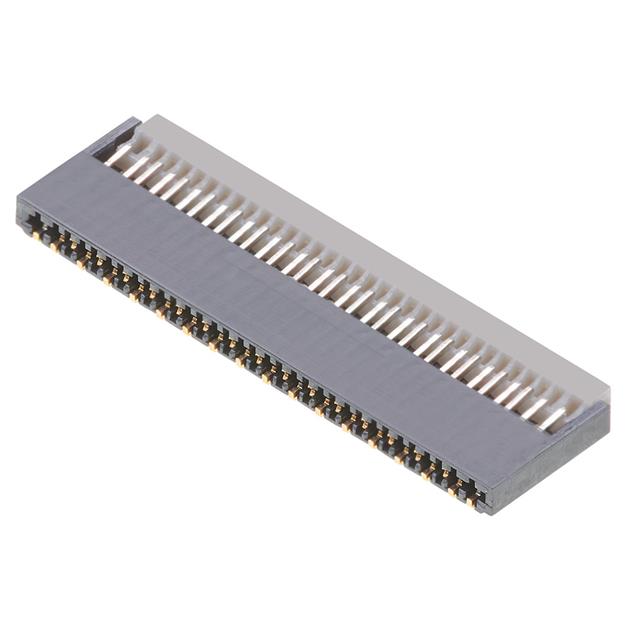

5047543100
Or copy the link below:
- Mfr.Part #
- 5047543100
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 31POS .3MM SMD R/A
- Stock
- 4,895
- In Stock ：
- 4,895
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Pitch :
- 0.012 0.30mm
- Number of Positions :
- 31
- Mating Cycles :
- 10
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Voltage - Rated :
- 50V
- ECCN Code :
- EAR99
- Actuator Color :
- Gray
- Termination :
- Solder
- Housing Color :
- Black
- Published :
- 2016
- Cable End Type :
- Tabbed
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- COPPER ALLOY
- FFC, FCB Thickness :
- 0.20mm
- Flat Flex Type :
- FPC
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Series :
- BackFlip, Easy-On 504754
- Connector/Contact Type :
- Contacts, Top and Bottom
- Locking Feature :
- Flip Lock, Backlock
- Current Rating (Amps) :
- 0.2A
- Height Above Board :
- 0.030 0.75mm
- Operating Temperature :
- -40°C~85°C
- Packaging :
- Tape and Reel (TR)
- Contact Finish :
- Gold
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Factory Lead Time :
- 13 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount, Right Angle
- Datasheets
- 5047543100
BackFlip, Easy-On 504754 Series FPC Contacts, Top and Bottom Tape & Reel (TR) 0.012 0.30mm Solder 31 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.2A
5047543100 Overview
The device's mounting type is Surface Mount, Right Angle.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the BackFlip, Easy-On 504754 Series of products.The device runs in -40°C~85°C Operating Temperature.
5047543100 Features
BackFlip, Easy-On 504754 series
5047543100 Applications
There are a lot of Molex
5047543100 FFC, FPC (Flat Flexible) Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
