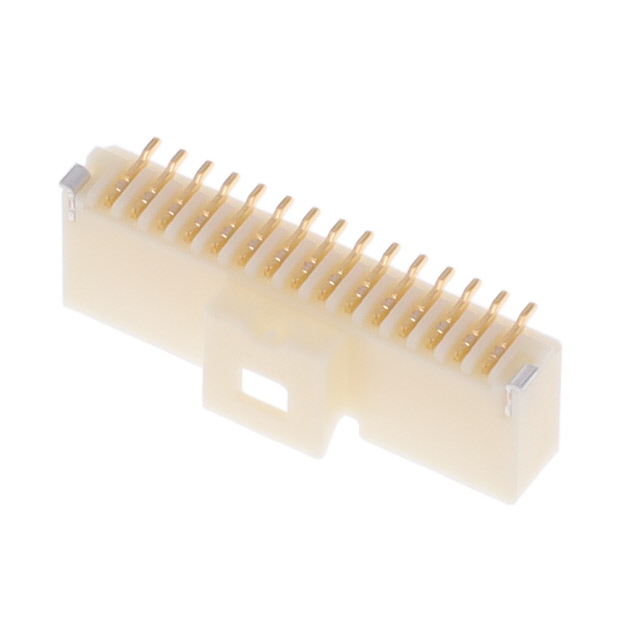

5044491507
Or copy the link below:
- Mfr.Part #
- 5044491507
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 15POS 1MM
- Stock
- 2,640
- In Stock ：
- 2,640
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Feature :
- Pick and Place, Solder Retention
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.039 1.00mm
- Published :
- 2012
- Insulation Height :
- 0.213 5.40mm
- Number of Positions :
- 15
- Contact Material :
- Phosphor Bronze
- Series :
- Pico-Clasp 504449
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Latch Holder
- Packaging :
- Tape and Reel (TR)
- ECCN Code :
- EAR99
- Applications :
- Automotive, General Purpose, Industrial
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 15 Weeks
- Number of Rows :
- 1
- Pbfree Code :
- yes
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Shape :
- Square
- HTS Code :
- 8536.69.40.40
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Mounting Type :
- Surface Mount
- Shrouding :
- Shrouded - 4 Wall
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 1.00μin 0.025μm
- Datasheets
- 5044491507
Pico-Clasp 504449 Series 1-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 15-Position Board to Cable/Wire 0.213 5.40mm Height
5044491507 Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Pico-Clasp 504449 Series.There is the possibility of using the device for Automotive, General Purpose, Industrial.In many ways, Pick and Place, Solder Retention makes it more powerful.
5044491507 Features
Pico-Clasp 504449 series
5044491507 Applications
There are a lot of Molex
5044491507 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
