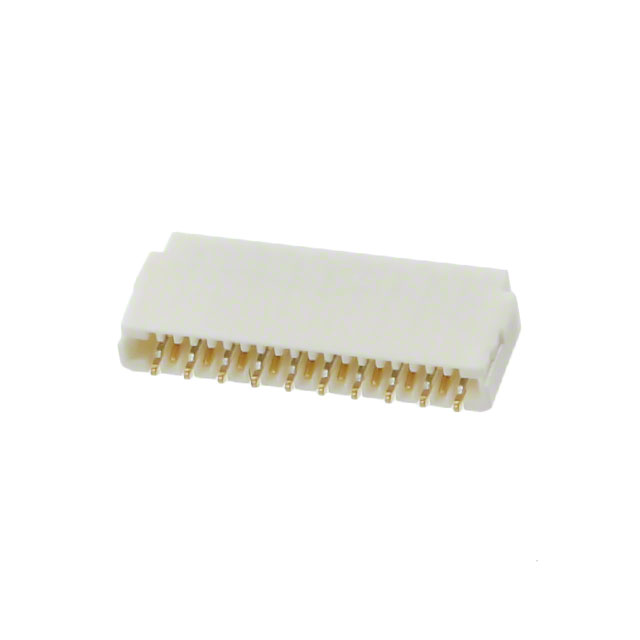

5042811900
Or copy the link below:
- Mfr.Part #
- 5042811900
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 19POS 0.30MM R/A
- Stock
- 9,603
- In Stock ：
- 9,603
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- FFC, FCB Thickness :
- 0.30mm
- Reference Standard :
- UL
- Series :
- 504281
- Mounting Type :
- Surface Mount, Right Angle
- PCB Contact Row Spacing :
- 2.4384 mm
- Mounting Option 1 :
- LOCKING
- Contact Material :
- Phosphor Bronze
- Voltage - Rated :
- 50V
- HTS Code :
- 8536.69.40.40
- Contact Pattern :
- RECTANGULAR
- Factory Lead Time :
- 21 Weeks
- Total Number of Contacts :
- 19
- Contact Resistance :
- 80mOhm
- Housing Color :
- White
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 19
- RoHS Status :
- ROHS3 Compliant
- Connector/Contact Type :
- Contacts, Top and Bottom
- Height Above Board :
- 0.039 1.00mm
- Material Flammability Rating :
- UL94 V-0
- Mating Cycles :
- 10
- Operating Temperature :
- -40°C~85°C
- Flat Flex Type :
- FPC
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- Number of Rows :
- 1
- Pitch :
- 0.012 0.30mm
- Current Rating (Amps) :
- 0.3A
- Reliability :
- COMMERCIAL
- Published :
- 2014
- Number Of PCB Rows :
- 2
- Termination :
- Solder
- Body Breadth :
- 0.039 inch
- Cable End Type :
- Tapered
- PCB Contact Pattern :
- STAGGERED
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Contact Style :
- BELLOWED TYPE
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Insulation Resistance :
- 50000000Ohm
- Body Length or Diameter :
- 0.26 inch
- Datasheets
- 5042811900
5042811900 Documents
504281 Series FPC Contacts, Top and Bottom Tape & Reel (TR) 0.012 0.30mm Solder 19 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.3A
5042811900 Overview
Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the 504281 Series of products.There is no operating temperature for the device.
5042811900 Features
504281 series
5042811900 Applications
There are a lot of Molex
5042811900 FFC, FPC (Flat Flexible) Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
