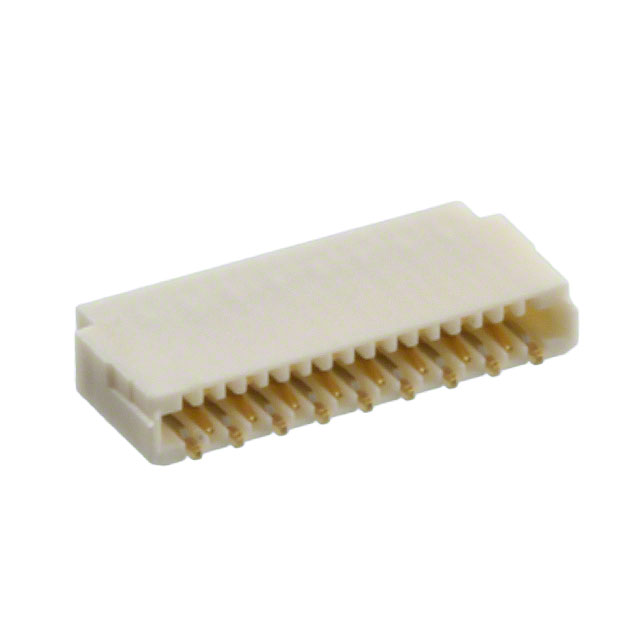

5042811700
Or copy the link below:
- Mfr.Part #
- 5042811700
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 17POS 0.30MM R/A
- Stock
- 12,714
- In Stock ：
- 12,714
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -40°C~85°C
- Series :
- 504281
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- Material Flammability Rating :
- UL94 V-0
- Connector/Contact Type :
- Contacts, Top and Bottom
- Body Length or Diameter :
- 0.236 inch
- Total Number of Contacts :
- 17
- Mounting Option 1 :
- LOCKING
- Insulation Resistance :
- 50000000Ohm
- FFC, FCB Thickness :
- 0.30mm
- Reference Standard :
- UL
- Contact Style :
- BELLOWED TYPE
- Contact Pattern :
- RECTANGULAR
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Height Above Board :
- 0.039 1.00mm
- PCB Contact Row Spacing :
- 2.4384 mm
- Published :
- 2014
- Number Of PCB Rows :
- 2
- Mounting Type :
- Surface Mount, Right Angle
- RoHS Status :
- ROHS3 Compliant
- Cable End Type :
- Tapered
- Current Rating (Amps) :
- 0.3A
- Pitch :
- 0.012 0.30mm
- Contact Material :
- Phosphor Bronze
- ECCN Code :
- EAR99
- Voltage - Rated :
- 50V
- Contact Resistance :
- 80mOhm
- Number of Positions :
- 17
- Housing Color :
- White
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Breadth :
- 0.039 inch
- Number of Rows :
- 1
- Flat Flex Type :
- FPC
- HTS Code :
- 8536.69.40.40
- Factory Lead Time :
- 11 Weeks
- PCB Contact Pattern :
- STAGGERED
- Mating Cycles :
- 10
- Termination :
- Solder
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Datasheets
- 5042811700
5042811700 Documents
504281 Series FPC Contacts, Top and Bottom Tape & Reel (TR) 0.012 0.30mm Solder 17 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.3A
5042811700 Overview
Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the 504281 Series, it can be found in this category.The device is operating at -40°C~85°C Operating Temperature.
5042811700 Features
504281 series
5042811700 Applications
There are a lot of Molex
5042811700 FFC, FPC (Flat Flexible) Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
