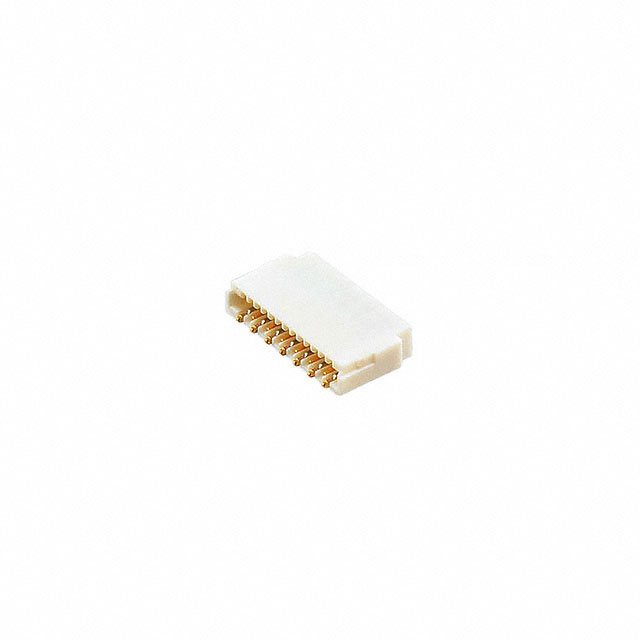

5042811300

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

PCB Contact Pattern :

STAGGERED

Housing Color :

White

Voltage - Rated :

50V

Body Length or Diameter :

0.189 inch

Number Of PCB Rows :

2

HTS Code :

8536.69.40.51

Current Rating (Amps) :

0.3A

Termination :

Solder

Cable End Type :

Tapered

Mounting Type :

Surface Mount, Right Angle

Contact Style :

BELLOWED TYPE

Contact Resistance :

80mOhm

Contact Finish Thickness :

3.94μin 0.10μm

Contact Material :

Phosphor Bronze

Mixed Contacts :

No

Pitch :

0.012 0.30mm

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Reference Standard :

UL

Reliability :

COMMERCIAL

Mating Cycles :

10

MIL Conformance :

No

Number of Rows :

2

Total Number of Contacts :

13

Operating Temperature :

-40°C~85°C

Connector/Contact Type :

Contacts, Top and Bottom

Series :

504281

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flat Flex Type :

FPC

FFC, FCB Thickness :

0.30mm

Published :

2014

IEC Conformance :

No

Number of Positions :

13

Mounting Option 1 :

LOCKING

Insulation Resistance :

50000000Ohm

Contact Finish :

Gold

PCB Contact Row Spacing :

2.4384 mm

Factory Lead Time :

21 Weeks

Packaging :

Tape and Reel (TR)

Height Above Board :

0.039 1.00mm

Body Breadth :

0.039 inch

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

Additional Feature :

POLARIZED

Contact Gender :

FEMALE

Contact Pattern :

RECTANGULAR

DIN Conformance :

No
