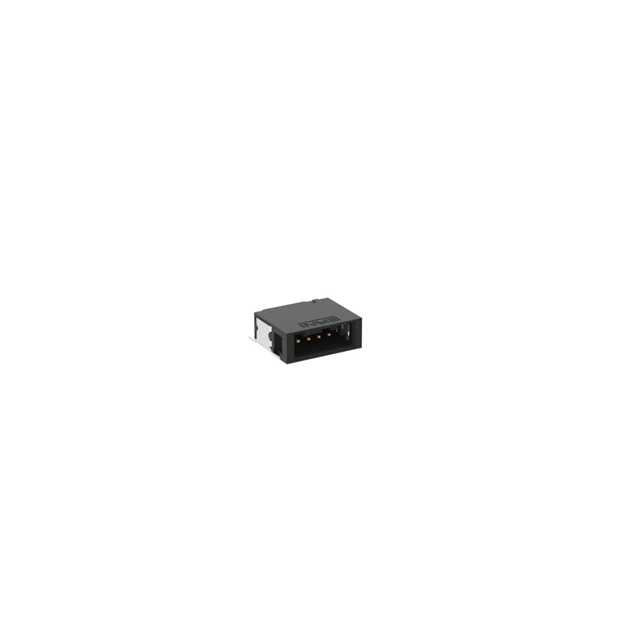

504255
Or copy the link below:
- Mfr.Part #
- 504255
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- MICBR M 4POS RA SMD W/O ELEC CPA
- Stock
- 1,842
- In Stock ：
- 1,842
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Insulation Height :
- 0.138 (3.50mm)
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- Current Rating (Amps) :
- 3.7A per Contact
- Contact Shape :
- Square
- Contact Material :
- COPPER ALLOY
- Termination :
- Solder
- Series :
- MicroBridge
- Mated Stacking Heights :
- -
- Base Product Number :
- -
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 157.5µin (4.00µm)
- Row Spacing - Mating :
- -
- Number of Positions Loaded :
- All
- Number of Positions :
- 4
- Voltage Rating :
- -
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Package :
- Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
- Applications :
- -
- Product Status :
- Active
- Ingress Protection :
- -
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Mounting Type :
- Surface Mount, Right Angle
- Pitch - Mating :
- 0.050 (1.27mm)
- Contact Length - Post :
- -
- Overall Contact Length :
- -
- Contact Finish Thickness - Mating :
- -
- Number of Rows :
- 1
- Contact Length - Mating :
- 0.138 (3.50mm)
- Fastening Type :
- Latch Holder
- Insulation Color :
- Black
- Features :
- Board Guide, Solder Retention
- Operating Temperature :
- -40°C ~ 150°C
- Datasheets
- 504255
504255 Documents
MicroBridge Series 1-Row Header Solder Copper Alloy Surface Mount, Right Angle Gold Liquid Crystal Polymer (LCP) 4-Position Board to Cable/Wire 0.138 (3.50mm) Height
504255 Overview
The packaging contains Header.There is a Surface Mount, Right Angle mounting type for the device.Product number MicroBridge belongs to the MicroBridge Series.In addition to -, there are other possible applications for the device.This device operates at a temperature of -40°C ~ 150°C.
504255 Features
MicroBridge series
504255 Applications
There are a lot of TE Connectivity
504255 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
