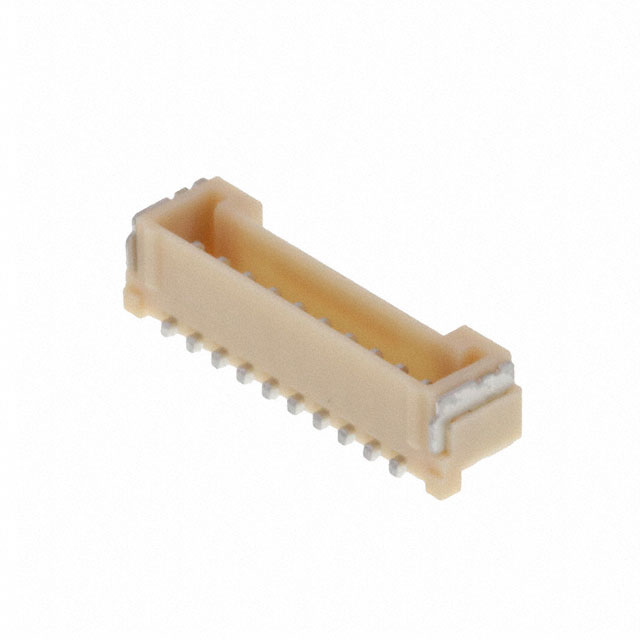

5041951070
Or copy the link below:
- Mfr.Part #
- 5041951070
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 10POS 1.25MM
- Stock
- 3,285
- In Stock ：
- 3,285
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Solder Retention
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Number of Rows :
- 1
- Factory Lead Time :
- 11 Weeks
- Connector Type :
- Header
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- RECTANGULAR
- Contact Finish - Mating :
- Tin
- Pbfree Code :
- yes
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Contact Type :
- Male Blade
- Pitch - Mating :
- 0.049 1.25mm
- Series :
- Micro-Lock 504195
- Insulation Color :
- Natural
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Surface Mount, Right Angle
- Packaging :
- Tape and Reel (TR)
- Published :
- 2016
- Fastening Type :
- Latch Lock
- Number of Positions :
- 10
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Contact Material :
- Brass
- Insulation Height :
- 0.163 4.15mm
- Datasheets
- 5041951070
Micro-Lock 504195 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 10-Position Board to Cable/Wire 0.163 4.15mm Height
5041951070 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the Micro-Lock 504195 Series, it belongs to the range of products of that series.A number of features make the Solder Retention feature more powerful.
5041951070 Features
Micro-Lock 504195 series
5041951070 Applications
There are a lot of Molex
5041951070 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
