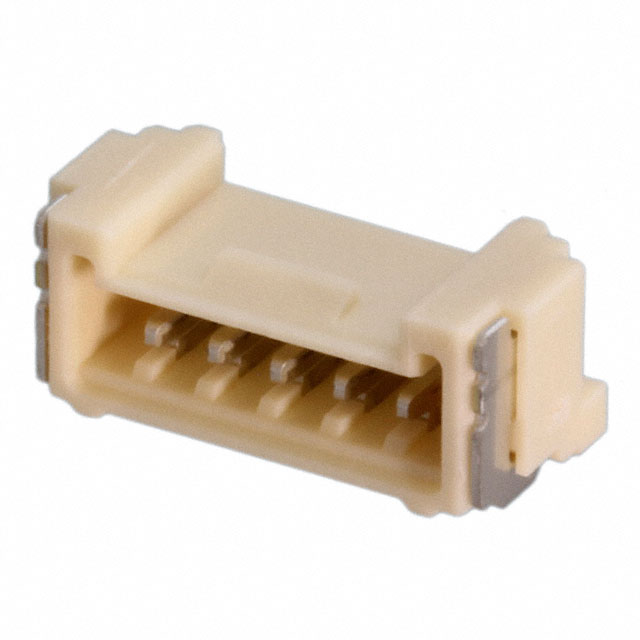

5041950570
Or copy the link below:
- Mfr.Part #
- 5041950570
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 5POS 1.25MM
- Stock
- 11,469
- In Stock ：
- 11,469
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Series :
- Micro-Lock 504195
- Total Number of Contacts :
- 5
- Contact Resistance :
- 20mOhm
- Polarization Key :
- POLARIZED HOUSING
- Number of Conductors :
- ONE
- Mounting Option 1 :
- LOCKING
- Reference Standard :
- UL
- Body Length or Diameter :
- 0.374 inch
- Termination :
- Solder
- Fastening Type :
- Latch Lock
- Factory Lead Time :
- 11 Weeks
- Pitch - Mating :
- 0.049 1.25mm
- Contact Shape :
- RECTANGULAR
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- ROHS3 Compliant
- Mating Contact Pitch :
- 0.049 inch
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Packaging :
- Tape and Reel (TR)
- Feature :
- Solder Retention
- Durability :
- 30 Cycles
- Number of Rows :
- 1
- Style :
- Board to Cable/Wire
- Contact Type :
- Male Blade
- ECCN Code :
- EAR99
- Connector Type :
- Header
- Number Of PCB Rows :
- 1
- Number of Positions :
- 5
- Contact Material :
- Brass
- Insulation Height :
- 0.163 4.15mm
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Mounting Type :
- Surface Mount, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2014
- Shrouding :
- Shrouded - 4 Wall
- Dielectric Withstanding Voltage :
- 700VAC V
- Number of Positions Loaded :
- All
- Reliability :
- COMMERCIAL
- Insulation Color :
- Natural
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Datasheets
- 5041950570
5041950570 Documents
Micro-Lock 504195 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 5-Position Board to Cable/Wire 0.163 4.15mm Height
5041950570 Overview
The product is packaged in Header.This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Micro-Lock 504195 Series.There are a number of advantages to its Solder Retention feature.
5041950570 Features
Micro-Lock 504195 series
5041950570 Applications
There are a lot of Molex
5041950570 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
