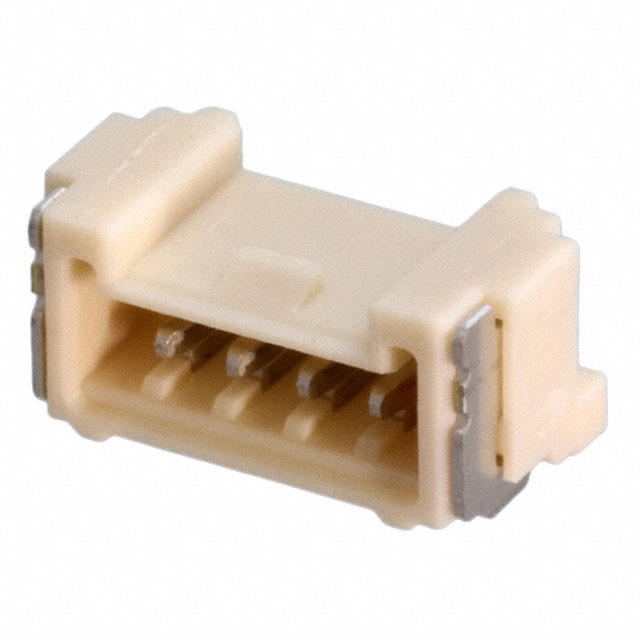

5041950470

Manufacturer :

Molex

Product Category :

Headers, Male Pins

RoHS Status :

ROHS3 Compliant

Mounting Option 1 :

LOCKING

Termination :

Solder

Number of Rows :

1

Fastening Type :

Latch Lock

Factory Lead Time :

11 Weeks

Durability :

30 Cycles

Body Length or Diameter :

0.325 inch

Packaging :

Tape and Reel (TR)

Insulation Height :

0.163 4.15mm

Total Number of Contacts :

4

Contact Resistance :

20mOhm

Operating Temperature (Max) :

85°C

Number of Positions :

4

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Number Of PCB Rows :

1

Insulation Color :

Natural

Number of Conductors :

ONE

Published :

2014

Contact Type :

Male Blade

Pitch - Mating :

0.049 1.25mm

Feature :

Solder Retention

Style :

Board to Cable/Wire

Connector Type :

Header

Contact Shape :

RECTANGULAR

Dielectric Withstanding Voltage :

700VAC V

Reference Standard :

UL

Mounting Type :

Surface Mount, Right Angle

Shrouding :

Shrouded - 4 Wall

Contact Finish - Mating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Brass

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

39.4μin 1.00μm

ECCN Code :

EAR99

Operating Temperature (Min) :

-25°C

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Polarization Key :

POLARIZED HOUSING

Series :

Micro-Lock 504195
