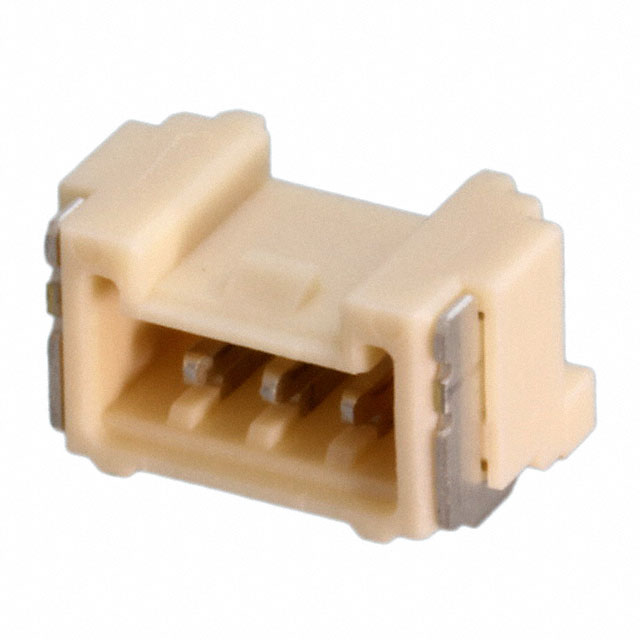

5041950370

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Shrouding :

Shrouded - 4 Wall

Contact Finish Thickness - Post :

39.4μin 1.00μm

Polarization Key :

POLARIZED HOUSING

ECCN Code :

EAR99

Published :

2014

Connector Type :

Header

Packaging :

Tape and Reel (TR)

Number of Positions Loaded :

All

Feature :

Solder Retention

Reliability :

COMMERCIAL

Reference Standard :

UL

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Contact Type :

Male Blade

Contact Material :

Brass

Insulation Height :

0.163 4.15mm

Dielectric Withstanding Voltage :

700VAC V

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Operating Temperature (Max) :

85°C

Number of Rows :

1

Contact Finish - Mating :

Tin

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Mating Contact Pitch :

0.049 inch

Operating Temperature (Min) :

-25°C

Contact Shape :

RECTANGULAR

Body Length or Diameter :

0.276 inch

Insulation Color :

Natural

Termination :

Solder

Contact Resistance :

20mOhm

Number Of PCB Rows :

1

Style :

Board to Cable/Wire

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

6 Weeks

Mounting Option 1 :

LOCKING

Series :

Micro-Lock 504195

Fastening Type :

Latch Lock

Mounting Type :

Surface Mount, Right Angle

Number of Positions :

3

Total Number of Contacts :

3

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.049 1.25mm
