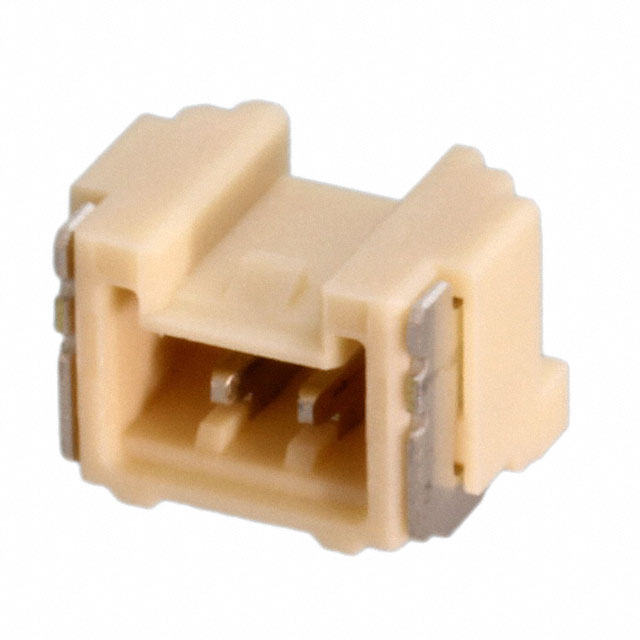

5041950270

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number Of PCB Rows :

1

Number of Positions :

2

Contact Type :

Male Blade

Mounting Option 1 :

LOCKING

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature (Max) :

85°C

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.69.40.40

Durability :

30 Cycles

Factory Lead Time :

11 Weeks

Packaging :

Tape and Reel (TR)

Insulation Height :

0.163 4.15mm

Contact Shape :

RECTANGULAR

Number of Positions Loaded :

All

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Feature :

Solder Retention

Connector Type :

Header

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass

Dielectric Withstanding Voltage :

700VAC V

Number of Conductors :

ONE

Contact Finish - Mating :

Tin

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Insulation Color :

Natural

Style :

Board to Cable/Wire

Fastening Type :

Latch Lock

Published :

2014

Reliability :

COMMERCIAL

ECCN Code :

EAR99

Shrouding :

Shrouded - 4 Wall

Pitch - Mating :

0.049 1.25mm

Contact Finish Thickness - Post :

39.4μin 1.00μm

Number of Rows :

1

Mating Contact Pitch :

0.049 inch

Total Number of Contacts :

2

Reference Standard :

UL

Series :

Micro-Lock 504195

Mounting Type :

Surface Mount, Right Angle
