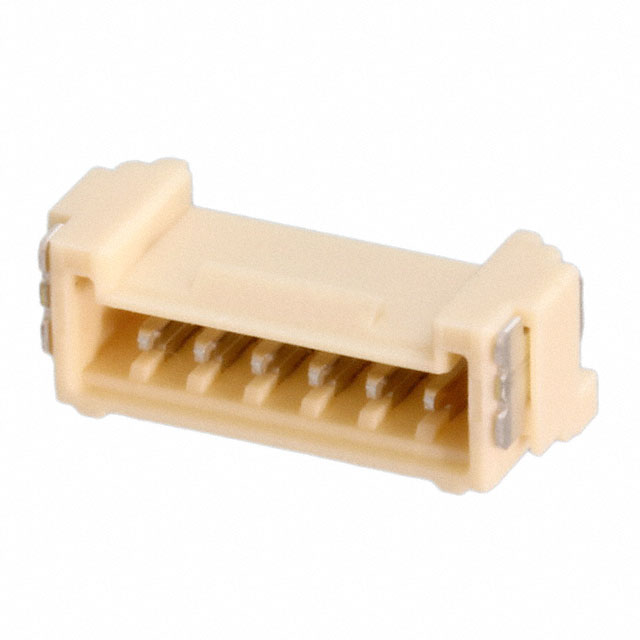

5041940670

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Type :

Male Blade

Operating Temperature (Max) :

85°C

Contact Shape :

RECTANGULAR

Mounting Option 1 :

LOCKING

Published :

2014

Insulation Color :

Natural

Packaging :

Tape and Reel (TR)

Reliability :

COMMERCIAL

Insulation Height :

0.163 4.15mm

Material Flammability Rating :

UL94 V-0

Fastening Type :

Latch Lock

Mating Contact Pitch :

0.049 inch

Total Number of Contacts :

6

Number of Positions :

6

Contact Resistance :

20mOhm

RoHS Status :

ROHS3 Compliant

Durability :

30 Cycles

Number of Rows :

1

Factory Lead Time :

6 Weeks

Termination :

Solder

Contact Material :

Brass

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Style :

Board to Cable/Wire

Series :

Micro-Lock 504194

Number of Conductors :

ONE

Number of Positions Loaded :

All

ECCN Code :

EAR99

JESD-609 Code :

e3

Mounting Type :

Surface Mount

Dielectric Withstanding Voltage :

700VAC V

Reference Standard :

UL

Stack Height (Mating) :

7.3mm

Operating Temperature (Min) :

-25°C

Shrouding :

Shrouded - 4 Wall

Pitch - Mating :

0.049 1.25mm

Contact Finish - Mating :

Tin

Body Length or Diameter :

0.423 inch

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Number Of PCB Rows :

1

Contact Finish Thickness - Post :

39.4μin 1.00μm

Connector Type :

Header

Feature :

Solder Retention
