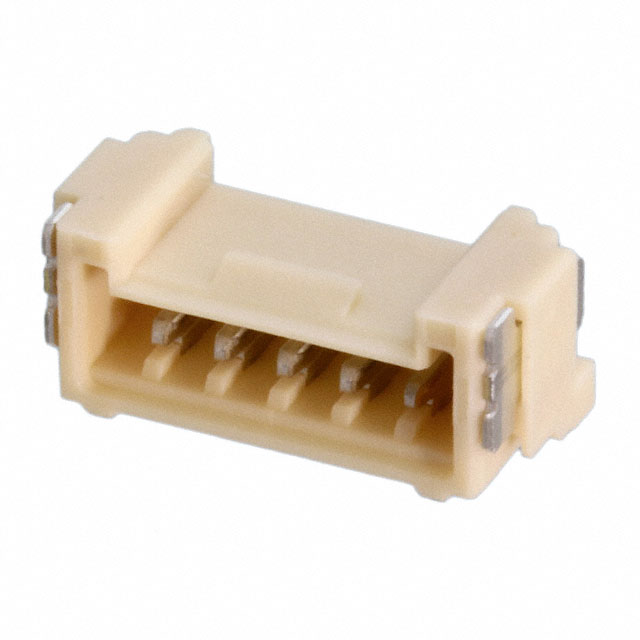

5041940570

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination :

Solder

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Surface Mount

Connector Type :

Header

Style :

Board to Cable/Wire

Number of Rows :

1

Mating Contact Pitch :

0.049 inch

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Pitch - Mating :

0.049 1.25mm

Contact Resistance :

20mOhm

Shrouding :

Shrouded - 4 Wall

Insulation Height :

0.163 4.15mm

Contact Shape :

RECTANGULAR

Contact Finish Thickness - Post :

39.4μin 1.00μm

Stack Height (Mating) :

7.3mm

Material Flammability Rating :

UL94 V-0

Body Length or Diameter :

0.374 inch

Series :

Micro-Lock 504194

Contact Type :

Male Blade

RoHS Status :

ROHS3 Compliant

Durability :

30 Cycles

Factory Lead Time :

11 Weeks

Reference Standard :

UL

Mounting Option 1 :

LOCKING

Reliability :

COMMERCIAL

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e3

Number of Positions :

5

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Fastening Type :

Latch Lock

Total Number of Contacts :

5

ECCN Code :

EAR99

Insulation Color :

Natural

Number of Conductors :

ONE

Feature :

Solder Retention

Contact Material :

Brass

Number of Positions Loaded :

All

Dielectric Withstanding Voltage :

700VAC V

Number Of PCB Rows :

1

Published :

2014

Contact Finish - Mating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
