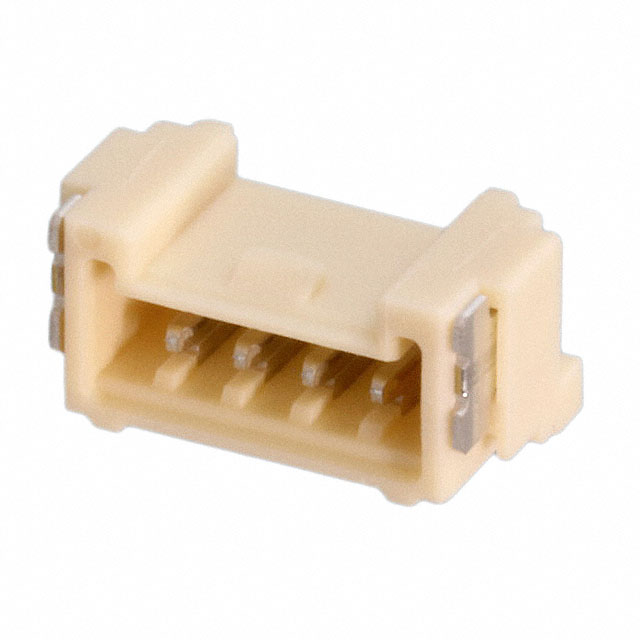

5041940470

Manufacturer :

Molex

Product Category :

Headers, Male Pins

RoHS Status :

ROHS3 Compliant

Contact Material :

Brass

Total Number of Contacts :

4

Packaging :

Tape and Reel (TR)

Published :

2014

Mounting Option 1 :

LOCKING

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

Feature :

Solder Retention

Connector Type :

Header

Termination :

Solder

Contact Shape :

RECTANGULAR

Body Length or Diameter :

0.325 inch

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Contact Finish Thickness - Post :

39.4μin 1.00μm

Pitch - Mating :

0.049 1.25mm

Factory Lead Time :

11 Weeks

Fastening Type :

Latch Lock

Mounting Type :

Surface Mount

Contact Resistance :

20mOhm

Number Of PCB Rows :

1

Stack Height (Mating) :

7.3mm

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Insulation Color :

Natural

Number of Rows :

1

Reference Standard :

UL

Contact Type :

Male Blade

Dielectric Withstanding Voltage :

700VAC V

Shrouding :

Shrouded - 4 Wall

Reliability :

COMMERCIAL

JESD-609 Code :

e3

Style :

Board to Cable/Wire

Durability :

30 Cycles

Number of Positions :

4

Insulation Height :

0.163 4.15mm

Operating Temperature (Min) :

-25°C

Operating Temperature (Max) :

85°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

Tin

Number of Conductors :

ONE

Series :

Micro-Lock 504194
