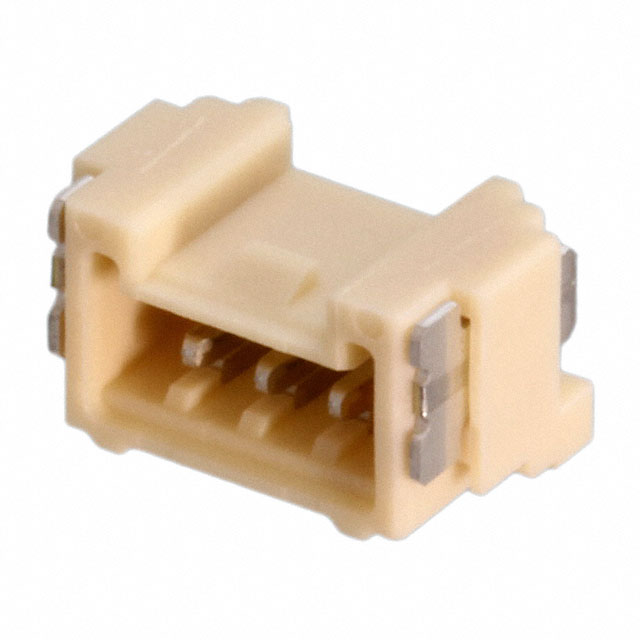

5041940370

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Reference Standard :

UL

Published :

2014

Number of Conductors :

ONE

Number of Positions :

3

Insulation Color :

Natural

Connector Type :

Header

Fastening Type :

Latch Lock

Stack Height (Mating) :

7.3mm

Body Length or Diameter :

0.276 inch

Insulation Height :

0.163 4.15mm

Mounting Type :

Surface Mount

Contact Finish - Mating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder

Contact Type :

Male Blade

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All

Dielectric Withstanding Voltage :

700VAC V

Total Number of Contacts :

3

Reliability :

COMMERCIAL

Feature :

Solder Retention

Packaging :

Tape and Reel (TR)

Contact Finish Thickness - Post :

39.4μin 1.00μm

Operating Temperature (Max) :

85°C

Style :

Board to Cable/Wire

Mounting Option 1 :

LOCKING

Shrouding :

Shrouded - 4 Wall

Operating Temperature (Min) :

-25°C

JESD-609 Code :

e3

Number Of PCB Rows :

1

Contact Resistance :

20mOhm

Contact Shape :

RECTANGULAR

Polarization Key :

POLARIZED HOUSING

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Factory Lead Time :

11 Weeks

Contact Material :

Brass

Series :

Micro-Lock 504194

Mating Contact Pitch :

0.049 inch

Pitch - Mating :

0.049 1.25mm

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Number of Rows :

1
