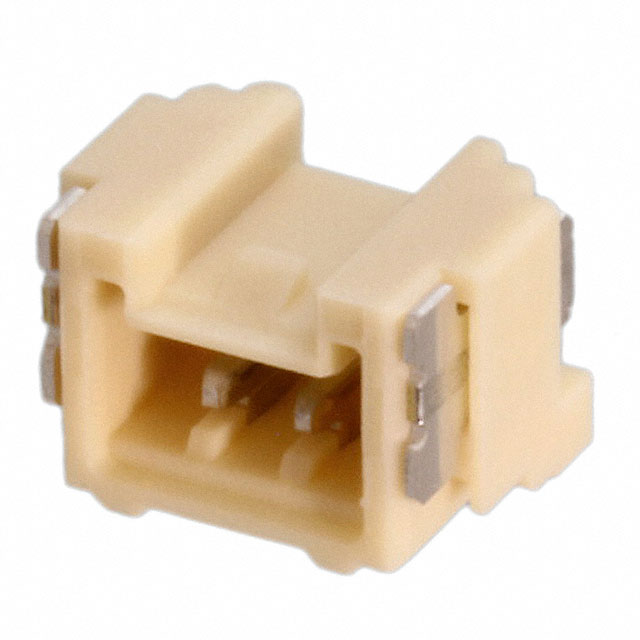

5041940270

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Positions :

2

Contact Finish Thickness - Mating :

39.4μin 1.00μm

Style :

Board to Cable/Wire

Number Of PCB Rows :

1

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Shrouding :

Shrouded - 4 Wall

Contact Material :

Brass

Termination :

Solder

Insulation Color :

Natural

Mounting Option 1 :

LOCKING

MIL Conformance :

No

Stack Height (Mating) :

7.3mm

Total Number of Contacts :

2

Insulation Height :

0.163 4.15mm

Pitch - Mating :

0.049 1.25mm

Connector Type :

Header

DIN Conformance :

No

Polarization Key :

POLARIZED HOUSING

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Mixed Contacts :

No

Operating Temperature (Max) :

85°C

Contact Shape :

RECTANGULAR

Reference Standard :

UL

Contact Type :

Male Blade

Number of Rows :

1

Factory Lead Time :

11 Weeks

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Dielectric Withstanding Voltage :

700VAC V

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Tin

Durability :

30 Cycles

HTS Code :

8536.69.40.40

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Published :

2014

Feature :

Solder Retention

Contact Finish Thickness - Post :

39.4μin 1.00μm

Number of Conductors :

ONE

Filter Feature :

No

Packaging :

Tape and Reel (TR)

Series :

Micro-Lock 504194

Mating Contact Pitch :

0.049 inch

Fastening Type :

Latch Lock
